Mô tả sản phẩm

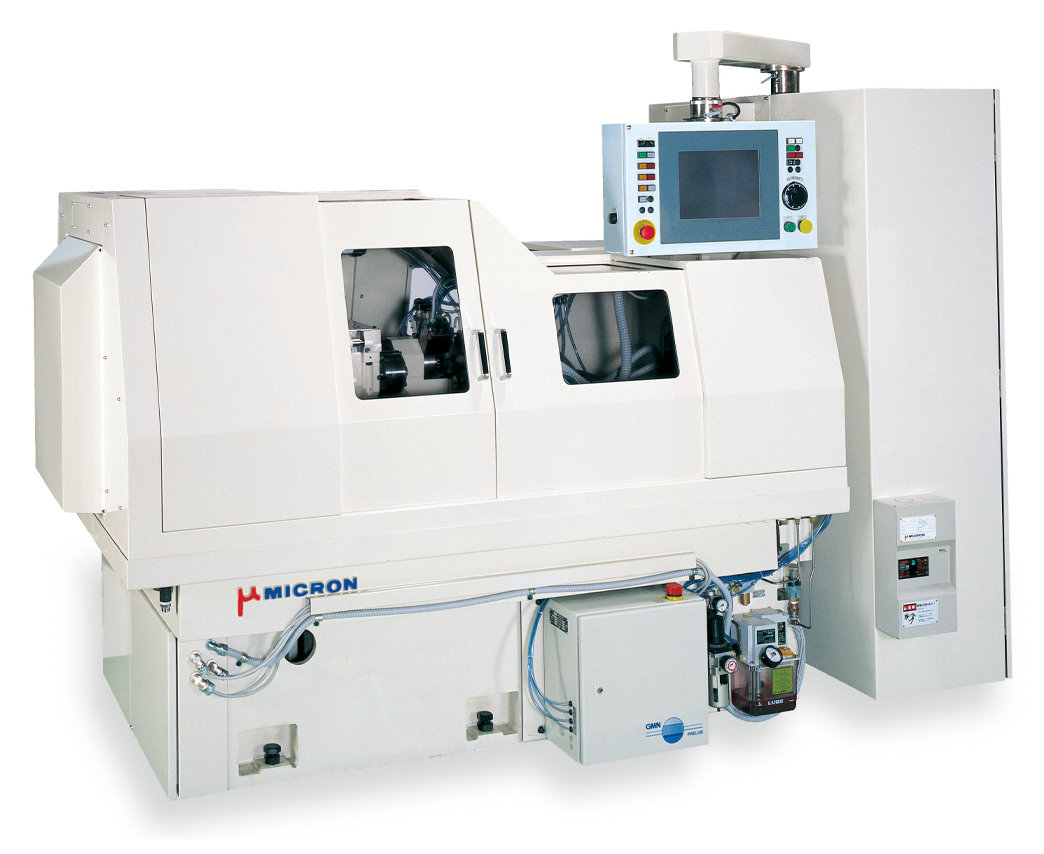

High-Precision and High Efficiency Internal Grinder designed exclusively for grinding two different bores at one chucking. Capable of high accuracy (concentricity) by dual chuck and dual spindle for simultaneous grinding. The high speed loader reduces non-grinding time and cycle time.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 20 | 40 | 50 | 0.75 | 0 - 4000 | 2 | 0.5 - 5.0 | 60.000 - 180.000 | 2650x1250x1700 | 4000 |
