Mô tả sản phẩm

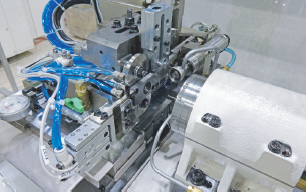

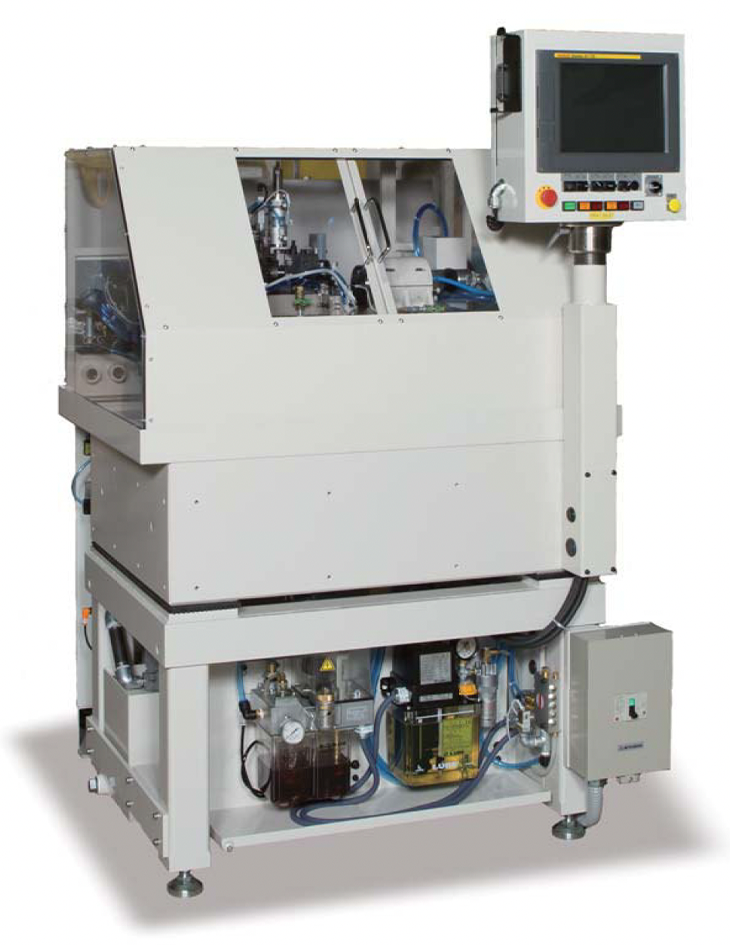

This is a 2-roll/1-shoe O.D. drive internal grinder, designed with a footprint of only half the size of an equivalent conventional size machine.
The machine uses linear guides and high precision ball screws, which allows for very high speed oscillation, with low vibration, and increased precision. This also reduces cycle time with easy and quick part changeover capability.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 10 | 20 | 15 | 0.5 | 0 - 3000 | 1 | 0.5 - 3.0 | 60.000 - 180.000 | 940x670x1300 | 1000 |
