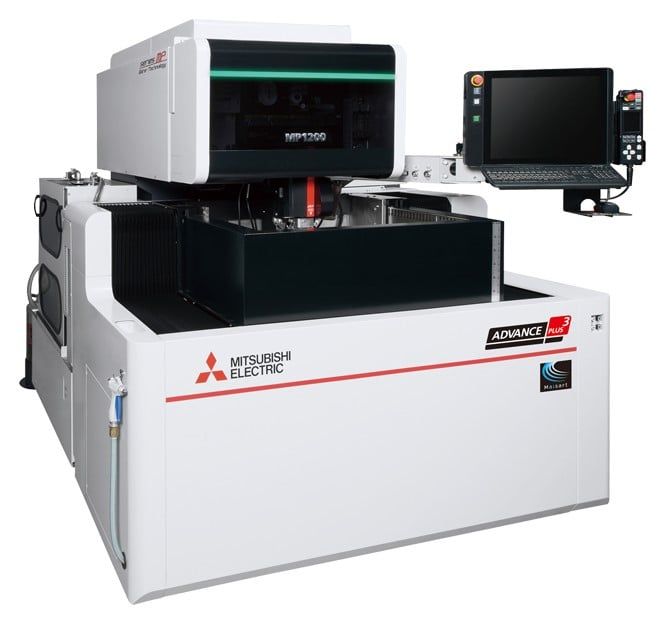

Machining accuracy & Stability Next-generation drive system and optimum machine structure
* Equipped with a linear shaft motor(LSM)
* Circular accuracy within 1μ is realized using optical drive system(ODS). Automatic wire threading Advanced technologies for greatly improved productivity
* New annealing system greatly improves wire threading with a curl ratio of less than 10%.
* Wire break point insertion is greatly improved for thick workpieces.
* Wire threading suitable for workpiece shape. (jet on/off and submerged break point insertion) Productivity Advanced Productivity
* MP Water Technology increased Tungsten Carbide Productivity up to 30% from the conventional oil dielectric uid wire-cut EDM.
* Newly added Built-in scheduler function Easy and exible multiple program operation. Operability Excellent performance with "Easy operation", "human error reduction" and "connect ability" supporting productivity improvement for customers.
* Information is displayed on a large 19-inch screen.
* Functions to be viewed or used are called by one touch from the HOME screen.
* The number of operations performed on the Navigation menu from setup to machining is reduced by almost 40%. (as compared to the past)
* Setup performance is improved by a thin hand pendant box with LED. Energy savings, low operating cost Consideration for the environment and cost reduction
* The operating cost of the machine can be viewed on the cost management screen.
This is useful for budget planning. SPECIFICATIONS: | Machine Unit | | Max. workpiece dimensions (W x D x H) | [mm] | 810 x 700 x 215 | | Max. workpiece weight | [kg] | 500 | | Table dimensions (W x D) | [mm] | 640 x 540 | | Table Type | Four-sided hardened table | | Machine travels (X x Y x Z) | [mm] | 400 x 300 x 220 (XY axis OPT-drive specifications) | | Machine travels (U x V) | [mm] | ±60 x ±60(Optdrive) | | Wire diameter | Standerd | [mm] | φ0.10 - 0.30 | | Option | [mm] | φ0.05, 0.07 | | Working tank method | Automatic elevation tank | | Machine Weight | [kg] | 3100 (including dielectric fluid reservoir) | | Dielectric fluid reservoir | | Tank capacity | [L] | 550 | | Filtering method | [Pieses] | 2 | | Water purifier (ion exchange resin) | [L] | 10 | | Installation | | Outline dimensions (W x D x H) | [mm] | 2025 x 2702 x 2015 | | Machine unit dimensions (W x H) | [mm] | 1910 x 2015 |
|
