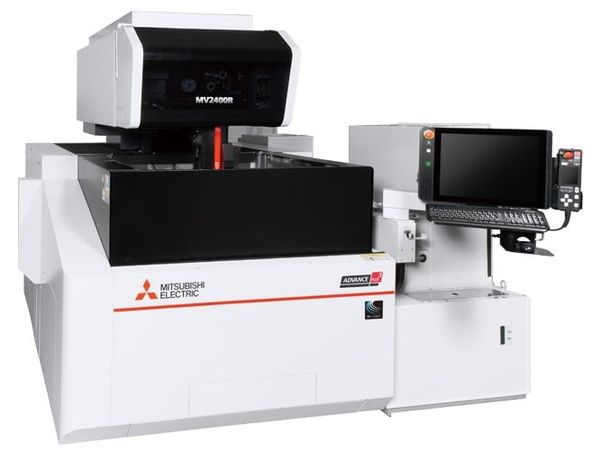

Opening the door to IoT New type control unit “D-CUBES”
By improving machining accuracy and utilizing IoT technology, we will support customer productivity improvement, with innovation technology, manufacturing will be on the next stage
Machining accuracy & Stability
Next-generation drive system and optimum machine structure
* Equipped with a linear shaft motor(LSM)
* Circular accuracy within 1μ is realized using optical drive system(ODS).
Automatic wire threading
Advanced technologies for greatly improved productivity
* New annealing system greatly improves wire threading with a curl ratio of less than 10%.
* Wire break point insertion is greatly improved for thick workpieces.
* Wire threading suitable for workpiece shape. (jet on/off and submerged break point insertion)
Productivity
Advanced Productivity
* Surface roughness improvements are realized through enhanced power supply performance for high speed machining.
* Surface finish reduced by 50% by machining with only 2 cuts.
* Machining time comparison for Rz 3.5 μm/Ra 0.45 μm with 3 cuts.
Operability
Excellent performance with "Easy operation", "human error reduction" and "connect ability" supporting productivity improvement for customers.
* Information is displayed on a large 19-inch screen.
* Functions to be viewed or used are called by one touch from the HOME screen.
* The number of operations performed on the Navigation menu from setup to machining is reduced by almost 40%. (as compared to the past)
* Setup performance is improved by a thin hand pendant box with LED.
Energy savings, low operating cost
Consideration for the environment and cost reduction
* The operating cost of the machine can be viewed on the cost management screen.
This is useful for budget planning.
ADVANCE PLUS control and High-value-added function is available (option)
* Digital-FS power supply (Option)
* φ0.05,φ0.07 automatic wire threading (Option)
* Angle Master ADVANCE II (Option)
SPECIFICATIONS:
| Machine Unit | |||||
| Max. workpiece dimensions (W x D x H) | [mm] | 1050 x 820 x 305(Column up specification 420) | |||
| Max. workpiece weight | [kg] | 1500 | |||
| Table dimensions (W x D) | [mm] | 840 x 640 | |||
| Table Type | Four-sided hardened table | ||||
| Machine travels (X x Y x Z) | [mm] | 600 x 400 x 310(Column up specification 420) (XY axis OPT-drive specifications) | |||
| Machine travels (U x V) | [mm] | ±75 x ±75(Optdrive) | |||
| Wire diameter | Standerd | [mm] | φ0.10 - 0.30 | ||
| Option | [mm] | φ0.05, 0.07 | |||
| Working tank method | Automatic virtical front door | ||||
| Machine Weight | [kg] | 3500(Column up specification 3650) | |||
| Dielectric fluid reservoir | |||||
| Tank capacity | [L] | 860(Column up specification 980) | |||
| Filtering method | [Pieses] | 2 | |||
| Water purifier (ion exchange resin) | [L] | 10 | |||
| Installation | |||||
| Outline dimensions (W x D x H) | [mm] | 2687 x 3030 x 2150 2837 x 3030 x 2380(Column up specification) | |||
| Machine unit dimensions (W x H) | [mm] | 2103 x 2150 2103 x 2380(Column up specification) | |||
