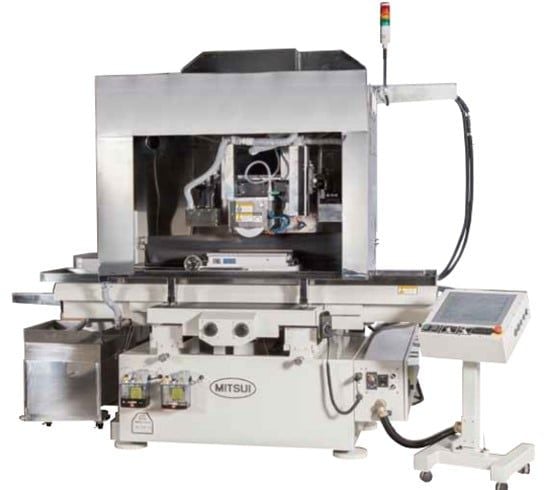

MITSUI HI-TECH - CNC ULTRA-PRECISION SURFACE GRINDERS (PC CONTROL) - MSG-300PC-NCL
Thương hiệu: MITSUI HI-TECH
Loại: MÁY MÀI PHẲNG
Mô tả sản phẩm
SPECIFICATIONS:
| SPECIFICATIONS | MSG-300PC-NCL | |
| Capacity | Table work surface size | 610x300 mm |
| Table movement (Longxcross) | 740x350 mm | |
| Maximum spindle height | 620 mm | |
| Table | Longitudinal (in Auto Operation) | 0 - 20 m/min |
| Feed per revolution | 0.1/1/10 mm switch | |
| Min.feed | 0.001/0.01/0.1 switch | |
| Continuous feed rate | 0 - 3000 mm/min | |
| Min.increment | 0.001 mm | |
| Min.resolution | 0.0001 mm | |
| Cross feed | Feed per revolution | 1 mm |
| Min.feed | 0.0001 mm | |
| Continuous feed rate | 0 - 500 mm/min | |
| Max.rapid speed | 1000 mm/min | |
| Min.increment | 0.0001 mm | |
| Min.resolution | 0.0001 mm | |
| Head | Feed per revolution | 1 mm |
| Min.feed | 0.0001 mm | |
| Continuous feed rate | 0 - 500 mm/min | |
| Max.rapid speed | 1000 mm/min | |
| Min.increment | 0.0001 mm | |
| Min.resolution | 0.0001 mm | |
| Wheel | Spindle speed (Inverter) | 500 - 2000 rpm |
| Size | OD305xW30xID76.2 mm | |
| Spindle | 3.7 kW/4P | |
| Motor | Cross feed | 0.4 kW |
| Spindle | 0.75 kW (with brake) | |
| Table | Coreless type linear motor 3 kW | |
| Guide surface + Drive | Longitudinal | Linear guide + Linear motor |
| Cross feed | Linear guide + ball screw | |
| Vertical feed | Linear guide + ball screw | |
| CNC | NC system | PC + motion control board |
| Control system (Vertical) | Full closed loop | |
| Control system (Cross) | Full closed loop | |
| Control axis | 3 axis | |
| Power | Power supply | 3-phase 200/220V |
| Permitted fluctuation | ± 10% | |
| Power Requirement | 18 KVA | |
| Air requirement | Linear motor cooling, spindle air purge | 200 l/min |
| Floor space | WxLxH | 3210x2740x2210 mm |
| Weight | Machine | 4400 kg |
