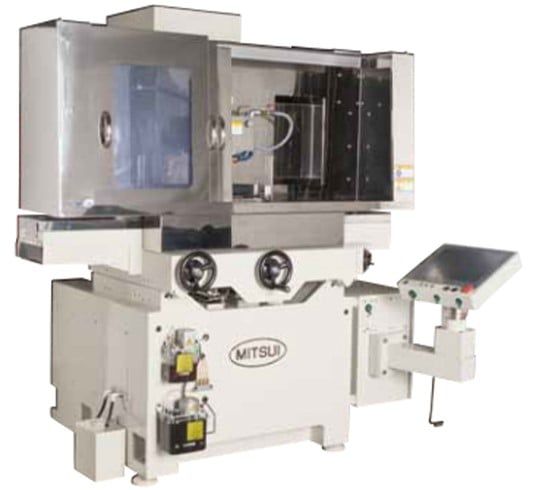

MITSUI HI-TECH - CNC ULTRA-PRECISION SURFACE GRINDERS (PC CONTROL) - MSG-525PC-NC/NCL
Thương hiệu: MITSUI HI-TECH
Loại: MÁY MÀI PHẲNG
Mô tả sản phẩm
SPECIFICATIONS:
| SPECIFICATIONS | MSG-525PC-NC | MSG-525PC-NCL | ||
| Capacity | Table work surface size | 550x250 mm | 550x250 mm | |
| Table movement (Cross feed) | 280 mm (250 mm with protective cover) | 280 mm (250 mm with protective cover) | ||
| Table movement (Longitudinal feed) | 600 mm | 600 mm | ||
| Maximun spindle height | 500 mm | 500 mm | ||
| Table | Longitudinal | Feed per handle revolution | 100 mm | 100 mm |
| Feed rate | 0 - 20 m/min | 0 - 30 m/min | ||
| Cross feed (Handle) | One short feed | 0.5/5 mm (switchable) | 0.5/5 mm (switchable) | |
| Min.feed | 0.0001/0.001 mm (switchable) | 0.0001/0.001 mm (switchable) | ||
| Continuous feed speed | 0 - 330 mm/min | 0 - 330 mm/min | ||
| Min.increment/Min.resolution | 0.0001/0.0001 mm | 0.0001/0.0001 mm | ||
| Head | Head (Handle) | One short feed | 0.1/1 mm (switchable) | 0.1/1 mm (switchable) |
| Min.feed | 0.0001/0.001 mm (switchable) | 0.0001/0.001 mm (switchable) | ||
| Continuous feed speed | 0 - 330 mm/min | 0 - 330 mm/min | ||
| Min.increment/Min.resolution | 0.0001/0.0001 mm | 0.0001/0.0001 mm | ||
| Number of spark outs | Program-dependent | Program-dependent | ||
| Wheel | Size | OD255xW25xID50.8 mm | OD255xW25xID50.8 mm | |
| Spindle speed (Inverter OP) | 500 - 4000 rpm | 500 - 4000 rpm | ||
| CNC | PC | Control axis | 3 | 3 |
| Simultaneous control axis | 2 | 3 | ||
| Power | Power supply | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz | |
| Permitted fluctuation | ± 10% | ± 10% | ||
| Power Requirement | 15 KVA | 15 KVA | ||
| Floor space | WxLxH | 3000x2500x2200 mm | 3000x2500x2200 mm | |
| Weight | Machine | 2300 kg | 2300 kg | |
