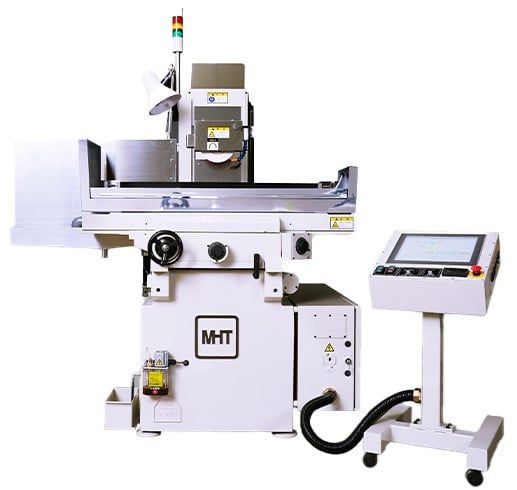

MITSUI HI-TECH - CNC ULTRA-PRECISION SURFACE GRINDERS (PC CONTROL) - MSG-818PC-NC/NCL
Thương hiệu: MITSUI HI-TECH
Loại: MÁY MÀI PHẲNG
Mô tả sản phẩm
SPECIFICATIONS:
| SPECIFICATIONS | MSG-818PC-NC | MSG-818PC-NCL | ||
| Capacity | Table work surface size | 480x200 mm | 480x200 mm | |
| Table movement (Cross feed) | 230 mm | 230 mm | ||
| Table movement (Longitudinal feed) | 500 mm | 500 mm | ||
| Maximun spindle height | 400 mm | 400 mm | ||
| Table | Automatic movement (average speed) | 0 - 15 m/min | 0 - 30 m/min | |
| Feed per handle revolution | 88 mm/rev | 88 mm/rev | ||
| Cross feed (Handle) | One short feed | 5 mm | 0.01/0.1/1 mm (switchable) | |
| Min.feed | 0.0001 mm | 0.0001/0.001/0.01 mm (switchable) | ||
| Continuous feed speed | 0 - 330 mm/min | 0 - 330 mm/min | ||
| Min.increment/Min.resolution | 0.0001/0.0001 mm | 0.0001/0.0001 mm | ||
| Head | Head (Handle) | One short feed | 1 mm | 1 mm |
| Min.feed | 0.0001 mm | 0.001 mm | ||
| Continuous feed speed | 0 - 330 mm/min | 0 - 330 mm/min | ||
| Min.increment/Min.resolution | 0.0001/0.0001 mm | 0.0001/0.0001 mm | ||
| Number of spark outs | Program-dependent | Program-dependent | ||
| Wheel | Size | OD205xW20xID31.75 mm | OD205xW20xID31.75 mm | |
| Spindle speed (50Hzx60Hz) | 500 - 4000 rpm (Inverter) | 500 - 4000 rpm (Inverter) | ||
| CNC | PC | Control axis | 3 | 3 |
| Simultaneous control axis | 2 | 3 | ||
| Power | Power supply | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz | |
| Permitted fluctuation | ± 10% | ± 10% | ||
| Power Requirement | 10 KVA | 10 KVA | ||
| Floor space | WxLxH (Including optional accesories) | 2500x1600x1800 mm | 2500x2200x2250 mm | |
| Weight | Machine | 1100 kg | 1400 kg | |
