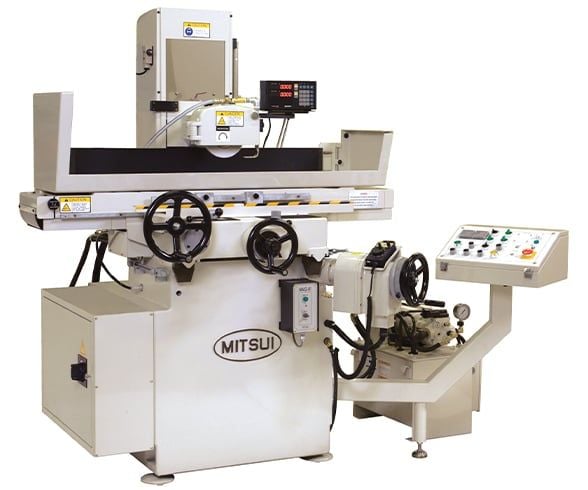

MITSUI HI-TECH - PRECISION SURFACE GRINDERS - HMD SERIES (FULLY AUTOMATIC) - MSG-200/250/300/400HMD
- CONSTRUCTION
Extremely heavy meehanite castings, internal rib reinforced. Their meehanite casting base uses jack bolts and plates for a 5 point leveling system. Another feature, which is a trademark with the Mitsui Design, is the ease in removal and replacement of key components, providing for "No Hassle" maintenance which translates to minimum down time and cost.
- PRECISION
Not all surface grinder manufacturers can attest to precision the way they do. Their cartridge spindle is second to none and REMOVABLE. The carriage/saddle moving on (2) 45 "Vees" combined with the table moving on Linear Ball Bearings make for the repeatability for which MITSUI is known. NO design compromises here.
- DURABILITY
Precision by design means little if it can not be maintained. MITSUI provides the durability for this with D-2 hardened and ground steel ways on the table, Carriage/Saddle and even on the column for vertical movement. The linear ball bearings complement the table/carriage union with durability. The cartridge spindle's lubrication is sealed in for life and the dust sealed out. The Standard Automatic Lubricating System leaves you 1 less task to worry about, as it lubricates ALL vital components automatically to insure minimal wear and friction.
SPECIFICATIONS:
| SPECIFICATIONS | MSG-200HMD | MSG-250HMD | MSG-300HMD | MSG-400HMD | ||
| Cross feed | Servo motor | Induction motor | Induction motor | Induction motor | ||
| Vertical feed | Stepping motor | Stepping motor | Stepping motor | Stepping motor | ||
| Longitudinal feed | Hydraulic drive | Hydraulic drive | Hydraulic drive | Hydraulic drive | ||
| Capacity | Table work surface size | 350x160 mm | 480x200 mm | 610x305 mm | 800x400 mm | |
| Table movement (LongxCross) | 360x200 mm | 480x220 mm | 740x350 mm | 900x440 mm | ||
| Maximun spindle height | 450 mm | 400 mm | 620 mm | 590 mm | ||
| Table | Table speed | 5 - 30 m/min | 5 - 20 m/min | 10 - 22 m/min | 5 - 22 m/min | |
| Cross feed | Feed per handle revolution | 3 mm | 6 mm | 6 mm | 6 mm | |
| Increment feed | 0.5 - 6.0 mm | 0.5 - 6.0 mm | 0.5 - 12.0 mm | 0.2 - 10.0 mm | ||
| Continuous feed | 0.1 - 0.5 m/min | 0.1 - 1.5 m/min | 0.1 - 2.4 m/min | 0.2 - 3.0 m/min | ||
| Head | Feed per handle revolution | 2 mm | 2 mm | 2 mm | 2 mm | |
| Feed per dial revolution | 0.005 mm | 0.005 mm | 0.005 mm | 0.005 mm | ||
| Total grinding depth | 0 - 99.999 mm | 0 - 99.999 mm | 0 - 99.999 mm | 0 - 99.999 mm | ||
| Rapid feed (50Hzx60Hz) | 240 mm/min | 240 mm/min | 240 mm/min | 180 mm/min | ||
| Wheel | Size | OD205xW20xID31.75 mm | OD205xW20xID31.75 mm | OD305xW32xID76.2 mm | OD355xW32xID127 mm | |
| Spindle speed (50Hzx60Hz) | 2900/3460 rpm | 2900/3460 rpm | 1430/1730 rpm | 1430/1730 rpm | ||
| Power | Power supply | Machine | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz |
| Mag.Chuck&Light | Single phase 100V 50/60Hz | Single phase 100V 50/60Hz | Single phase 100V 50/60Hz | Single phase 100V 50/60Hz | ||
| Permitted fluctuation | ± 10% | ± 10% | ± 10% | ± 10% | ||
| Requirement (Optional accessories) | 5 KVA | 7 KVA | 7 KVA | 7 KVA | ||
| Floor space | WxLxH | 1480x1180x1750 mm | 2300x1350x1750 mm | 2755x1931x1990 mm | 3600x2300x2095 mm | |
| Weight | Machine | 980 kg | 1250 kg | 2040 kg | 3800 kg | |
| Hydraulic tank | 100 kg | 100 kg | 60 kg | 150 kg | ||
