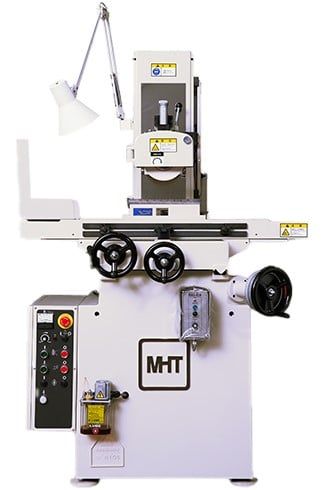

MITSUI HI-TECH - PRECISION SURFACE GRINDERS - M SERIES (HAND FEED) - MSG-200/250M
- CONSTRUCTION
Extremely heavy meehanite castings, internal rib reinforced. Their meehanite casting base uses jack bolts and plates for a 3 point leveling system. Another feature, which is a trademark with the Mitsui Design, is the ease in removal and replacement of key components, providing for "No Hassle" maintenance which translates to minimum down time and cost.
- PRECISION
Not all surface grinder manufacturers can attest to precision the way they do. Their cartridge spindle is second to none and REMOVABLE. The carriage/saddle moving on (2) 45 "Vees" combined with the table moving on Linear Ball Bearings make for the repeatability for which MITSUI is known. NO design compromises here.
- DURABILITY
Precision by design means little if it can not be maintained. MITSUI provides the durability for this with D-2 hardened and ground steel ways on the table, Carriage/Saddle and even on the column for vertical movement. The linear ball bearings complement the table/carriage union with durability. The cartridge spindle's lubrication is sealed in for life and the dust sealed out. The Standard Automatic Lubricating System leaves you 1 less task to worry about, as it lubricates ALL vital components automatically to insure minimal wear and friction.
SPECIFICATIONS:
| SPECIFICATIONS | MSG-200M | MSG-250M | ||
| Capacity | Table work surface size | 350x160 mm | 480x200 mm | |
| Table movement (LongxCross) | 380x200 mm | 500x250 mm | ||
| Maximun spindle height | 450 mm | 400 mm | ||
| Table | Feed per handle revolution | 100mm/rev | 88mm/rev | |
| Cross feed | Feed per handle revolution | 3 mm | 6 mm | |
| Feed per dial pision | 0.02 mm | 0.02 mm | ||
| Feed per micro pision (OP) | 0.001 mm | 0.002 mm | ||
| Head | Feed per handle revolution | 2 mm | 2 mm | |
| Feed per dial pision | 0.005 mm | 0.005 mm | ||
| Feed per micro pision (OP) | 0.001 mm | 0.001 mm | ||
| Rapid feed rate (50Hzx60Hz) (OP) | 370/440 mm/min | 370/440 mm/min | ||
| Wheel | Size | OD205xW20xID31.75 mm | OD205xW20xID31.75 mm | |
| Spindle speed (50Hzx60Hz) | 2900/3460 rpm | 2900/3460 rpm | ||
| Power | Power supply | Machine | 3-phase 200/220V 50/60Hz | 3-phase 200/220V 50/60Hz |
| Mag.Chuck&Light | Single phase 100V 50/60Hz | Single phase 100V 50/60Hz | ||
| Permitted fluctuation | ± 10% | ± 10% | ||
| Requirement (Including optional accessories) | 1.5 KVA | 1.5 KVA | ||
| Floor space | WxLxH | 1480x1180x1800 mm | 1850x1310x1750 mm | |
| Weight | 900 kg | 1100 kg | ||
