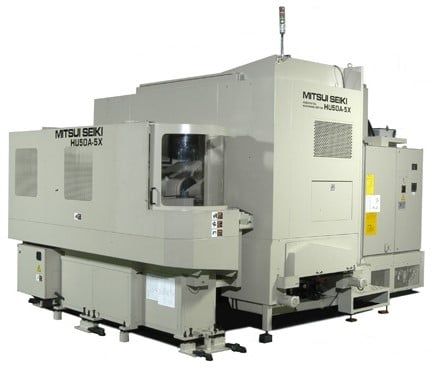

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS 5-AXIS - HU50A-5X
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY CNC 5 TRỤC
Mô tả sản phẩm
- The A-axis rotation center is located above the pallet, so it is highly rigid for machining thrust and is less affected by indexing accuracy.
- The B-axis sliding surface is a hybrid method with a slippery edge, which combines the advantages of both sliding rigidity and smooth movement.
- Class-leading A- and B-axis indexing speeds reduce machining time.
SPECIFICATIONS:
| Item | HU50A-5X | |
| Stroke | X-Axis (mm) | 720 |
| Y-Axis (mm) | 850 | |
| Z-Axis (mm) | 850 | |
| A-axis (degree) | +5 ~ -95 | |
| B-axis (degree) | 360 | |
| Table | Table size (mm) | 500x500 |
| Max. workpiece (dia.× height) | φ750×700 | |
| Maximum loading weight (kg) | 650 | |
| Spindle | Taper | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 12,000 （OP：20,000) | |
| Positioning accuracy | XYZ a-xis (mm) | ± 0.001 |
| A-axis (sec.) | ± 6 | |
| B-axis (sec.) | ± 3 | |
| Rapid feed rate | XYZ Axis (m/min) | X：24 YZ：36 |
| A-axis (rpm) | 6 | |
| B-axis (rpm) | 12 | |
| APC | 2APC Front Shuttle (OP:6/8/10) | |
| ATC number of tools to be stored | 60 | |
| Machine weight (kg) | About 18,000 | |
