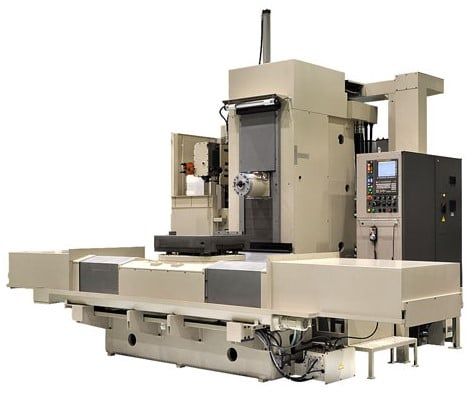

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS - H6E
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY NGANG CNC
Mô tả sản phẩm
- The extremely thick three-point support bed, the XYZ axis sliding surface is a sliding surface of all axes V-V, and the craftsmanship is the ultimate mother machine that far surpasses the machining center due to the mastery of craftsmanship.
- Excellent response to move reliably even in the smallest movement unit of 0.1 μm
- Direct drive spindle achieves extremely low thermal displacement.
SPECIFICATIONS:
| Item | H6E | |
| Stroke | X-Axis (mm) | 1,300 |
| Y-Axis (mm) | 900 | |
| Z-Axis (mm) | 900 | |
| Table | Pallet size (mm) | 800 x 800 |
| Maximum loading weight (kg) | 1,600 | |
| Spindle | Taper | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 6,000 Option: 8,000 | |
| Rapid feed rate (m/min) | XYZ: 5 | |
| Cutting feed rate (m/min) | 4 | |
| APC | Option: 2/4/6/8/10 | |
| ATC number of tools to be stored | 60 Option: 90, 120, 180, 240, 360 | |
| Machine weight (kg) | About 21,000 | |
