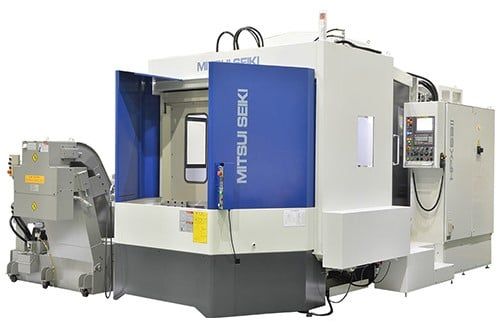

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS - HPX63 II
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY NGANG CNC
Mô tả sản phẩm
- Each guide machine achieves a top-class fast feed speed, fast feed speed 54m/min, acceleration 0.5G.
- Downsizing coolant unit and reducing footprint by about 14% compared to conventional models Use IE motors that have achieved energy-saving standards.
- Spindle bifacial restraint as standard.
- More accurate and rigid than conventional machines.
SPECIFICATIONS:
| Item | HPX63 II | |
| Stroke | X-Axis (mm) | 1,000 |
| Y-Axis (mm) | 800 | |
| Z-Axis (mm) | 900 | |
| Table | Pallet size (mm) | 630 x 630 |
| Maximum loading weight (kg) | 1,200 | |
| Spindle | Taper | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 6,000 Option: 12,000/15,000/20,000 | |
| Rapid feed rate (m/min) | XYZ: 54 | |
| Cutting feed rate (m/min) | 32 | |
| APC | 2APC front swivel type | |
| ATC number of tools to be stored | 60 | |
| Machine weight (kg) | About 18,000 | |
