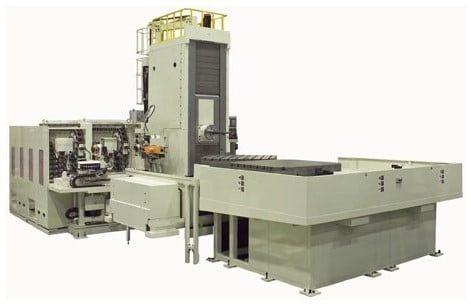

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS - HS8A
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY NGANG CNC
Mô tả sản phẩm
- High precision large machine with pallet size 1500mm size.
- XYZ axis strokes can be combined to configure the machine from the available types.
- Optional quill spindle available.
- Various other special specifications are available.
SPECIFICATIONS:
| Item | HS8A | |
| Stroke | X-Axis (mm) | 1,800 Option: 2,400/3,000 |
| Y-Axis (mm) | 1,500 Option: 1,800 | |
| Z-Axis (mm) | 1,200 Option: 1,500 | |
| Table | Pallet size (mm) | 1,500 x 1,500 |
| Maximum loading weight (kg) | 8,000 | |
| Spindle | Taper | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 3,150 Option: 6,000/12,000 | |
| Rapid feed rate (m/min) | XY: 7/Z: 10 | |
| Cutting feed rate (m/min) | 4 | |
| APC | Option: 2/4/6 | |
| ATC number of tools to be stored | 60 | |
| Machine weight (kg) | About 35,000 | |
