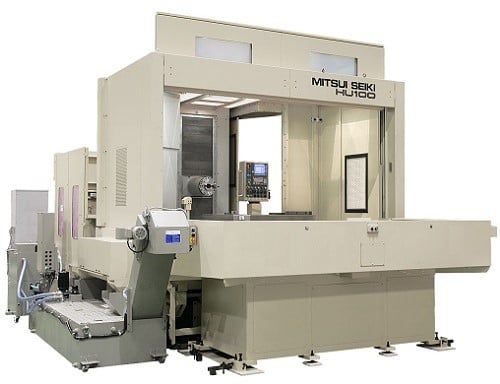

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS - HU100
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY NGANG CNC
Mô tả sản phẩm
- It is the only one in its class that achieves very high rigidity by adopting a T-shaped integrated bed. (X-axis standard stroke machine).
- XYZ axis strokes can be combined from three types to form the machine.
- Despite being a large machine, it achieves the same high accuracy as a medium-sized machine.
- The combination of a highly rigid basic structure and an ultra-high torque spindle enables high-efficiency processing of difficult-to-machine materials such as titanium.
SPECIFICATIONS:
| Item | HU100 (typeI.) | HU100 (typeII.) | HU100 (typeIII.) | |
| Stroke | X-Axis (mm) | 1,300 | 1,600 | 2,000 |
| Y-Axis (mm) | 1,000 | 1,200 | 1,500 | |
| Z-Axis (mm) | 1,000 | 1,200 | 1,400 | |
| Table | Pallet size (mm) | 1,000 x 1,000 | 1,000 x 1,000 | 1,000 x 1,000 |
| Maximum loading weight (kg) | 3,000 | 5,000 | 5,000 | |
| Spindle | Taper | ISO 7/24 Taper No.50 | ISO 7/24 Taper No.50 | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 4,500 | 4,500 | 4,500 | |
| Rapid feed rate (m/min) | 20 | 15 | XY:12 Z:15 | |
| Cutting feed rate (m/min) | 10 | 10 | 10 | |
| APC | 2APC frontboxer type | 2APC frontboxer type | 2APC frontboxer type | |
| ATC number of tools to be stored | 60 | 60 | 60 | |
| Machine weight (kg) | About 30,000 | About 32,000 | About 35,000 | |
