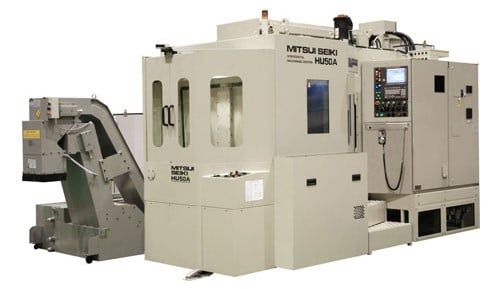

MITSUI SEIKI - HORIZONTAL MACHINING CENTERS - HU50A
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY NGANG CNC
Mô tả sản phẩm
- Angular guides maintain long-term accuracy and achieve high rigidity.
- The quenched corner guide is attached to the surface where the straightness and angle are achieved by the kisage processing.
- Since the load is reduced by air support on the column sliding part, smooth high-speed feeding is achieved despite the sliding surface of the sliding system.
- Integrated, extremely rigid 3-point support bed.
SPECIFICATIONS:
| Item | HU50A | |
| Stroke | X-Axis (mm) | 720 |
| Y-Axis (mm) | 700 | |
| Z-Axis (mm) | 650 | |
| Table | Pallet size (mm) | 500 x 500 |
| Maximum loading weight (kg) | 800 | |
| Spindle | Taper | ISO 7/24 Taper No.40 |
| Spindle rotation speed (rpm) | 8,000 Option: 12,000 / 20,000 | |
| Rapid feed rate (m/min) | XYZ: 36 | |
| Cutting feed rate (m/min) | 20 | |
| APC | 2APC front swivel type | |
| ATC number of tools to be stored | 60 | |
| Machine weight (kg) | About 12,000 | |
