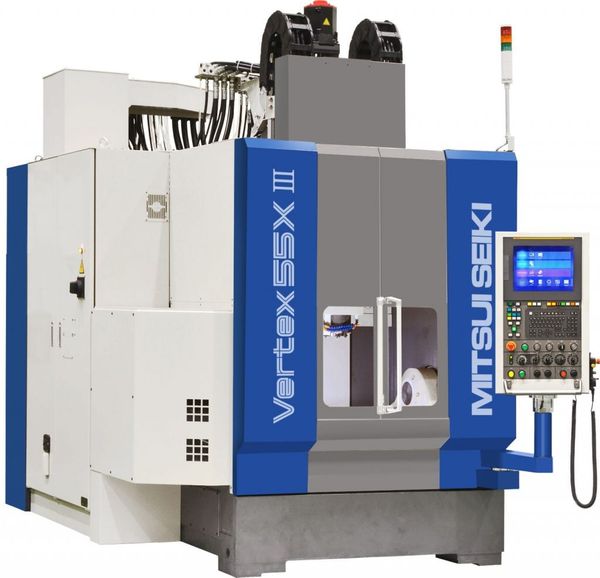

MITSUI SEIKI - VERTICAL MACHINING CENTERS 5-AXIS - VERTEX55X III
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY CNC 5 TRỤC
Mô tả sản phẩm
- Compact installation space (2m×3m) and can load large workpieces (φ750mm× height 525mm).
- Adopts in-house tilting and rotary tables for high-precision and high-speed indexing.
- The basic structure of the machine is a "cube-on structure" that combines high rigidity and high precision.
- Extremely good chip drainage with the center trough method.
- Double door for excellent accessibility.
- The high-performance spindle thermal displacement correction function improves the displacement of the Z-axis to about 1/3 of the previous one.
- Improved bed column rigidity improves the surface quality of 3D shapes by micro-line feeding.
- Standard 15" LCD control panel with HMI function.
SPECIFICATIONS:
| Item | VERTEX55X III | |
| Stroke | X-Axis (mm) | 550 |
| Y-Axis (mm) | 600 | |
| Z-Axis (mm) | 500 | |
| A-axis (degree) | +15 ~ -105 | |
| C-axis (degree) | 360 | |
| Table | Table size (mm) | Φ 400 |
| Maximum loading weight (kg) | 350 | |
| Spindle | Taper | ISO 7/24 Taper No.40 |
| Spindle rotation speed (rpm) | 15,000 / 25,000 | |
| Positioning accuracy | XYZ a-xis (mm) | ± 0.001 |
| A-axis (sec.) | ± 6 | |
| C-axis (sec.) | ± 4 | |
| Rapid feed rate (m/min) | XYZ: 48 | |
| ATC number of tools to be stored | 40 | |
| Machine weight (kg) | About 9,500 | |
