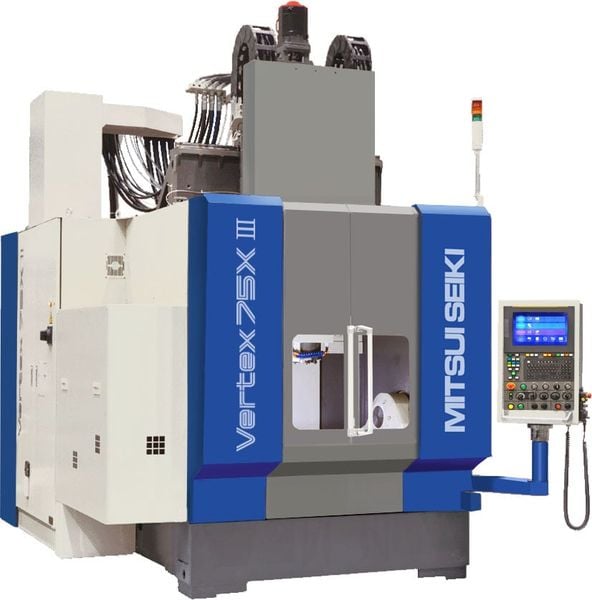

MITSUI SEIKI - VERTICAL MACHINING CENTERS 5-AXIS - VERTEX75X III
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY CNC 5 TRỤC
Mô tả sản phẩm
- Compact installation space (2.2 m× 3.4 m) for loading large workpieces (φ950 mm× height 650 mm).
- Adopts in-house tilting and rotating tables. Achieve high-precision, high-speed indexing.
- Easy access to tools and workpieces.
- Good chipping in the center trough.
- Spindle thermal displacement correction is standard for increased accuracy in dynamic conditions.
SPECIFICATIONS:
| Item | VERTEX75X III | |
| Stroke | X-Axis (mm) | 750 |
| Y-Axis (mm) | 800 | |
| Z-Axis (mm) | 700 | |
| A-axis (degree) | +15 ~ -105 | |
| C-axis (degree) | 360 | |
| Table | Table size (mm) | Φ 500 |
| Maximum loading weight (kg) | 500 | |
| Spindle | Taper | ISO 7/24 Taper No.40 |
| Spindle rotation speed (rpm) | 15,000 / 25,000 | |
| Positioning accuracy | XYZ a-xis (mm) | ± 0.001 |
| A-axis (sec.) | ± 6 | |
| C-axis (sec.) | ± 4 | |
| Rapid feed rate (m/min) | XYZ: 48 | |
| ATC number of tools to be stored | 40 | |
| Machine weight (kg) | About 12,500 | |
