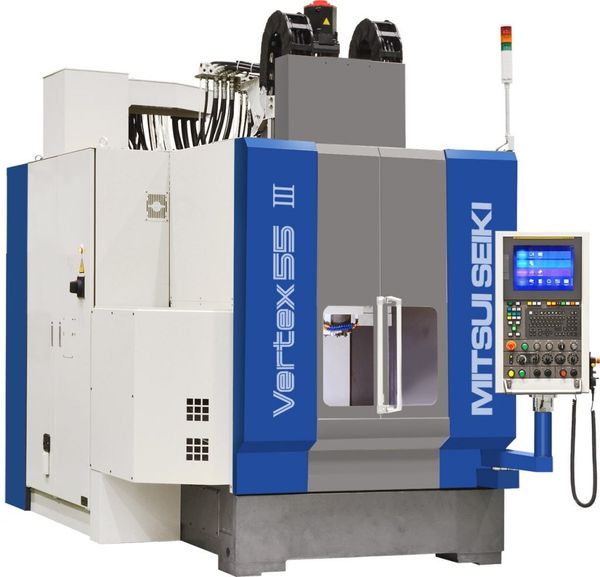

MITSUI SEIKI - VERTICAL MACHINING CENTERS - VERTEX55 III
Thương hiệu: MITSUI SEIKI
Loại: MÁY PHAY CNC
Mô tả sản phẩm
- The basic structure of the machine is a "cube-on structure" that combines high rigidity and high precision.
- Extremely good chip drainage with the center trough method.
- Double door for excellent accessibility.
- The high-performance spindle thermal displacement correction function improves the displacement of the Z-axis to about 1/3 of the previous one.
- Improved bed column rigidity improves the surface quality of 3D shapes by micro-line feeding.
- Standard 15" LCD control panel with HMI function.
SPECIFICATIONS:
| Item | VERTEX55 III | |
| Stroke | X-Axis (mm) | 550 |
| Y-Axis (mm) | 600 | |
| Z-Axis (mm) | 500 | |
| Table | Table size (mm) | 700 x 600 |
| Maximum loading weight (kg) | 800 | |
| Spindle | Taper | ISO 7/24 Taper No.40 |
| Spindle rotation speed (rpm) | 15,000 / 25,000 | |
| Rapid feed rate (m/min) | XYZ: 48 | |
| ATC number of tools to be stored | 24 Option: 40, 60 | |
| Machine weight (kg) | About 8,800 | |
