Mô tả sản phẩm
- The standard 12,000 min-1 spindle is a direct drive system, and the motor and spindle body are thermally insulated, resulting in minimal thermal displacement
- The X and Y axes provide smooth movement on the sliding surface of the rolling guide, and the sliding surface on the Z axis is rigid on the sliding surface of the sliding guide
- The guide mounting surface is straight and straight by sucking processing, so it is possible to maintain accuracy over a long period of time as well as initial accuracy
SPECIFICATIONS:

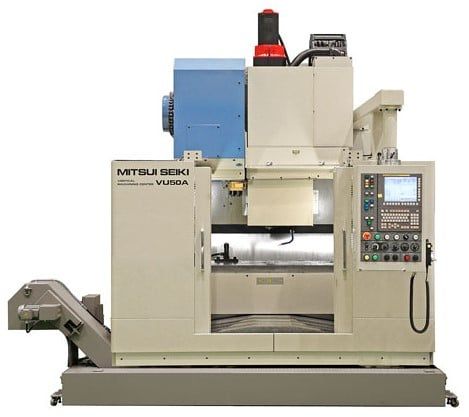

| Item | VU50A | |
| Stroke | X-Axis (mm) | 700 |
| Y-Axis (mm) | 500 | |
| Z-Axis (mm) | 450 | |
| Table | Table size (mm) | 1,100 x 580 |
| Maximum loading weight (kg) | 600 | |
| Spindle | Taper | ISO 7/24 Taper No.40 |
| Spindle rotation speed (rpm) | 12,000 Option: 15,000 / 20,000 | |
| Rapid feed rate (m/min) | XY: 36 / Z: 24 | |
| Cutting feed rate (m/min) | 20 | |
| Positioning accuracy (mm) | ± 0.001 | |
| Repeated positioning accuracy (mm) | ± 0.001 | |
| ATC number of tools to be stored | 20 Option: 30, 40, 60 | |
| Machine weight (kg) | About 9,400 | |
