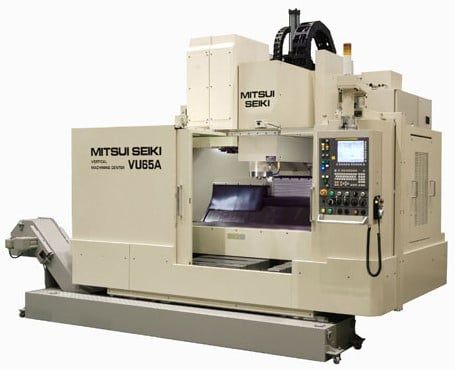

Mô tả sản phẩm
- Long-term accuracy and high rigidity are achieved by using angular guides. The quenched square guides are attached to the surface where the straightness and angle have been achieved by kisage processing.
- There are four Y-axis guides, and there is no overhang even when the X-axis moves to the end of the stroke.
- The spindle is standard specification, in addition to the 50 spindle 6,000 min-1 with high rigidity gear drive, 50 spindle 12,000 min-1 and 40 spindle 20,000 min-1 are available as options.
SPECIFICATIONS:
| Item | VU65A | |
| Stroke | X-Axis (mm) | 1,280 |
| Y-Axis (mm) | 650 | |
| Z-Axis (mm) | 610 | |
| Table | Table size (mm) | 1,500 x 600 |
| Maximum loading weight (kg) | 1,500 | |
| Spindle | Taper | ISO 7/24 Taper No.50 |
| Spindle rotation speed (rpm) | 6,000 Option: 12,000 / 20,000 | |
| Rapid feed rate (m/min) | 24 | |
| Cutting feed rate (m/min) | 10 | |
| Positioning accuracy (mm) | ± 0.0015 | |
| Repeated positioning accuracy (mm) | ± 0.001 | |
| ATC number of tools to be stored | 20 Option: 30, 40, 60 | |
| Machine weight (kg) | About 13,000 | |
