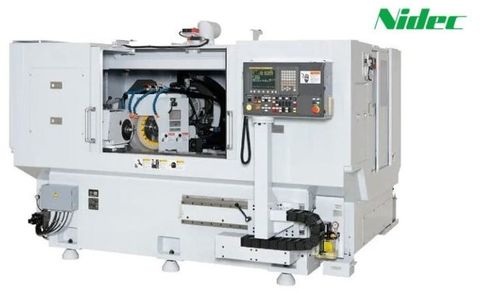

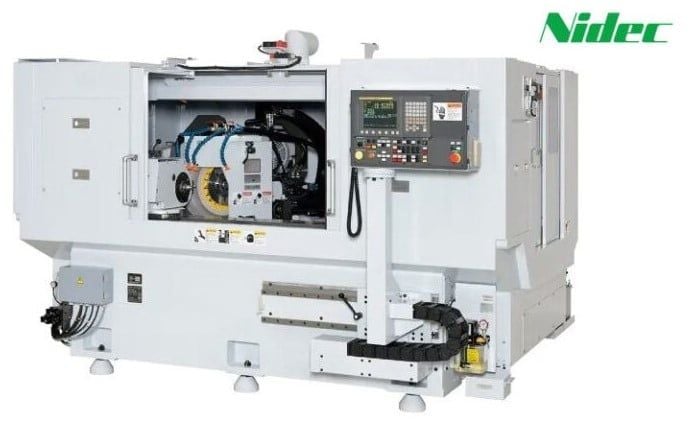

Mô tả sản phẩm
SPECIFICATIONS:
| Item / Model | PD23 | PD32 | |||
|---|---|---|---|---|---|
| Capability | |||||
| Grinding wheel slide type | Angular/straight | Angular/straight | |||
| Swing (mm) | ⌀230 | ⌀320 | |||
| Center distance (mm) | 350 | 500 | 1,000 | 1,500 | |
| Max. grinding diameter (mm) | ⌀200 | ⌀300 | |||
| Max. grinding weight (kg) | 50 | 150 | |||
| Grinding wheel | |||||
| Outer diameter (mm) | A:⌀510 P:⌀455(⌀510) | ⌀510(⌀610) | |||
| Inner diameter × width (mm) | ⌀127 (⌀152.4 ) X50 (75) | ⌀203.2 X 120 ( 145*) | |||
| Peripheral speed (m/s) | 60(80) | 60(80) | |||
| Grinding wheel stand (X-axis) | |||||
| Rapid traverse rate (m/min) | ⌀20 | ⌀20 | |||
| Grinding feedrate (mm/min) | ⌀0.0001 to 20,000 | ⌀0.0001 to 20,000 | |||
| Command unit (µm) | ⌀0.1 | ⌀0.1 | |||
| Grinding wheel stand (Z-axis) | |||||
| Rapid traverse rate (m/min) | 12 | 12 | |||
| Traverse speed (mm/min) | 0.0001 to 12,000 | 0.0001 to 12,000 | |||
| Command unit (µm) | 0.1 | 0.1 | |||
| Head stock | |||||
| Rotation speed (min-1) | 8 to 800 | 10 to 500 | |||
| Number of conversions | Continuous | Continuous | |||
| Center taper | MT No. 4 | MT No. 4 | |||
| Tailstock | |||||
| Stroke (mm) | 150 (including normal stroke 35) | 50 | |||
| Clamp method | Spring | Spring | |||
| Forward/backward method | Manual lever | Manual lever | |||
| Center taper | MT No. 4 | MT No. 5 | |||
| Taper fine adjustment stroke (mm) | ±0.125 | ±0.125 | |||
| Dresser | Single point dresser holder | Single point dresser holder | |||
| Motor | |||||
| Grinding wheel motor (kW) | 5.5 (7.5) | 11(15) | |||
| Spindle motor (kW) | 1.6 | 2.1 | |||
| Power capacity (kVA) | 15(18) | 23(28) | |||
| Floor to work center height (mm) | 1,000 | 1,105 | |||
| NC device | FANUC 32i-Model B | ||||
| Machine weight (kg) | 6,000 | 7,000 | 8,500 | 10,000 | |
