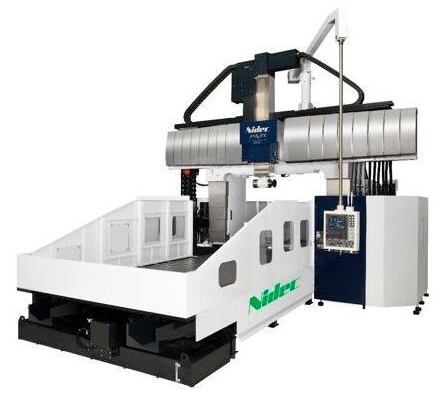

NIDEC - DOUBLE COLUMN 5 FACE MILLING MACHINE - MVR-Cx SERIES
Thương hiệu: NIDEC
Loại: MÁY PHAY GIƯỜNG
Mô tả sản phẩm
- Simple and easy operation and maintenance
- It is suitable for customers who are in the field such as manufacturing single item or small lot production.
- Coolant guards on both sides of the table (Opt.)
- Highly efficient production possible for various large parts
- Minimizing non-cutting time
- Useful attachment as standard equipment
- Smooth installing with its compact packaging
*SPECIFICATIONS:
| Item/Model | MVR25Cx | MVR30Cx | ||
| Table | Working area | Width (mm) | 1500 | 2000 |
| Length (mm) | 3000 Opt: 4000 | 4000 Opt: 5000 | ||
| Loading capacity (ton) | 15 | 20 | ||
| Throat clearance between columns (mm) | 2050 | 2550 | ||
| Distance from spindle end to table surface (mm) | 1650 | |||
| Spindle | Ram size (mm) | 350x350 | ||
| Spindle speed (rpm) | 20～4,000（opt. 20～6,000） | |||
| Spindle motor output (cont/30 min) (kW) | 22/30：Low/High | |||
| ATC tool storage capacity (pcs) | 50 | |||
| (Opt: 80) | ||||
| Machine weight (kg/working area mm) | 34,670/3,000 38,190/4,000 | 41,690/4,000 45,210/5,000 | ||
