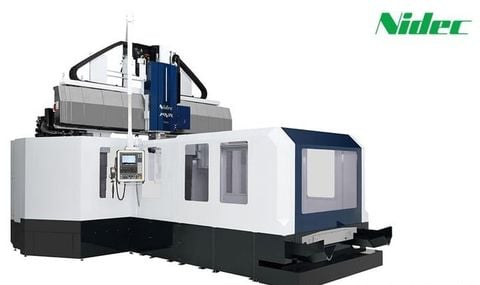

NIDEC - DOUBLE COLUMN 5 FACE MILLING MACHINE - MVR-Hx SERIES

Thương hiệu: NIDEC

Loại: MÁY PHAY GIƯỜNG

Sản phẩm trước Sản phẩm sau

Mô tả sản phẩm

Outstanding accuracy
The spindle core cooling that suppresses thermal displacement
Thermo-stabilizer column maintains geometric accuracy without being affected by changes in environmental temperature
Prominent cutting ability
Powerful heavy cutting on both vertical and horizontal axes
Versatile performance
Many kinds of attachments and package options available

Right angle head	Powerful Right angle head High Right angle head Small Right angle head
Extension head	Extension head (long) Extension head (short) Extension head (small diameter) High speed Extension head High speed Extension head (built-in motor)
Universal head	Universal head (offset type) Universal head (center head) High speed universal head
5-axis machining head	5-axis (NC2-axis) attachment

*SPECIFICATIONS:

Item/Model			MVR25Hx	MVR30Hx	MVR35Hx	MVR40Hx	MVR45Hx
Table	Working area	Width (mm)	1500	2000	2500	3000	3500
		Length (mm)	3000 (Opt: 4000, 5000, 6000, 8000)	3000 (Opt: 4000, 5000, 6000, 8000, 10000)	4000 (Opt: 5000, 6000, 8000, 10000)		6000 (Opt: 8000, 10000)
		Loading capacity (ton/m)	12/3.0 (opt. 15/4.0, 18/5.0, 20/6.0, 20/8.0)	20/3.0 (opt. 25/4.0, 30/5.0 to 10.0)	25/4.0 (opt. 30/5.0 to 10.0)		35/6.0 (opt. 30/8.0, 25/10.0)
	Throat clearance between columns (mm)		2050	2550	3250	3750	4250
Distance from spindle end to table surface (mm)			1650		1850		2150
			(Opt: 2010)		(Opt: 2150)
Ram	Ram size (mm)		350x350
	Spindle speed (rpm)		20～8,000 （opt. 17～6,000, 11～4,000, 40～12,000）
	Spindle motor output (cont/30 min) (kW)		Cont. 22/30：Low/High （opt. 18.5/26：Low/High,　22/30：Cont./30min，22/30：Cont./30min）
ATC tool storage capacity (pcs)			60
			(Opt: 80, 100, 120, 180)
Machine weight (kg/working area mm)			35,090/3,000	38,590/3,000	58,540/4,000	66,540/4,000	103,940/6,000
