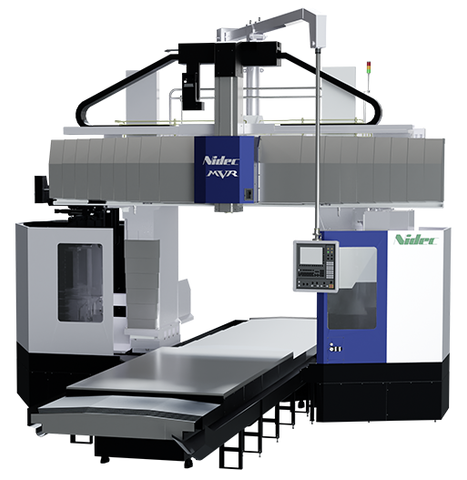

NIDEC - DOUBLE COLUMN 5 FACE TYPE MILLING MACHINE - MVR-Ax SERIES
Thương hiệu: NIDEC
Loại: MÁY PHAY GIƯỜNG
Mô tả sản phẩm
- High Productivity
- Non-cutting time is reduced with each axis at high speed rapid traverse.
- The cutting performance
- Powerful five-face machining with the high- performance spindle and attachment.
- Gear drive spindle is among the options and it is suitable for heavy duty machining.
- A variety of attachments is available and can handle many kinds of work pieces.
- User friendly
- Nidec Navi can support operators in each process like programing and centering.
- Simple collision prevention function can avoid accidents during debugging.
*SPECIFICATIONS:
| Item/Model | MVR25Ax | MVR30Ax | MVR35Ax | MVR40Ax | MVR45Ax | ||
| Table | Working area | Width (mm) | 1500 | 2000 | 2500 | 3000 | 3500 |
| Length (mm) | 3000 (Opt: 4000, 5000, 6000, 8000) | 3000 (Opt: 4000, 5000, 6000, 8000, 10000) | 4000 (Opt: 5000, 6000, 8000, 10000) | 6000 (Opt: 8000, 10000) | |||
| Throat clearance between columns (mm) | 2050 | 2550 | 3250 | 3750 | 4250 | ||
| Distance from spindle end to table surface (mm) | 1650 | 1850 | 2150 | ||||
| (Opt: 2010) | (Opt: 2150) | ||||||
| Spindle | Ram size (mm) | 350x350 | |||||
| Spindle speed (rpm) | 20～6,000 （opt. 20～10,000, 11～4,000） | ||||||
| Spindle motor output (cont/30 min) (kW) | Cont. 22/30kW：Low/High（opt. Cont. 22/30kW：Low/High，22/30kW：Cont./30min） | ||||||
| ATC tool storage capacity (pcs) | 60 | ||||||
| (Opt: 80, 100, 120, 180) | |||||||
