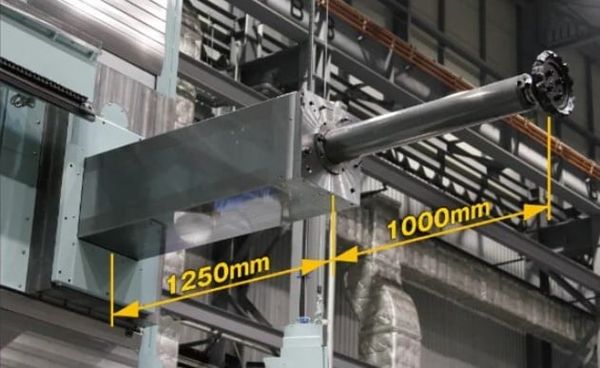

The sufficient spindle extension can make it possible to handle large workpieces comfortably.
| Z-axis stroke | 1250mm | |
|---|---|---|
| Ram size | □420mm | |
| W-axis stroke | 1000mm | |
| Spindle diameter |
|
SPECIFICATIONS:
| Item / Model | MAF150C | MAF180C | |
|---|---|---|---|
| Axis travel | |||
| Column, horizontal X-axis (mm) | 5,000 (opt. Extensible at every 2,000 mm) | ||
| Saddle, vertical Y-axis (mm) | 3,000 (opt. 4,000, 5,000) | ||
| Ram, in/out Z-axis (mm) | 1,250 | ||
| Boring spindle, in/out W-axis (mm) | 1,000 | ||
| Boring spindle diameter (mm) | ⌀150 | ⌀180 | |
| Boring spindle end taper | No. 50 | ||
| Milling spindle diameter (mm) | ⌀200 | ⌀240 | |
| Spindle speed (min-1) | 6 to 2,500 | ||
| Spindle motor output (kW) | 55/75/85 (continuous/30 min/10 min) | ||
| Machine weight (kg) | 33,000 | ||
