Mô tả sản phẩm

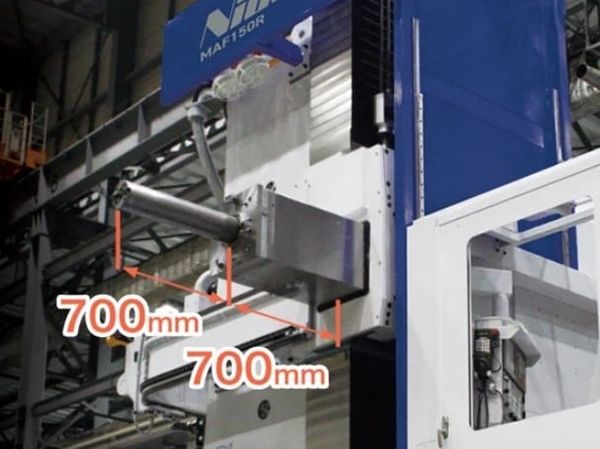

| Z-axis stroke | 700mm | |
|---|---|---|
| Ram size | □400mm | |
| W-axis stroke | 700mm | |
| Spindle diameter |
|
SPECIFICATIONS:

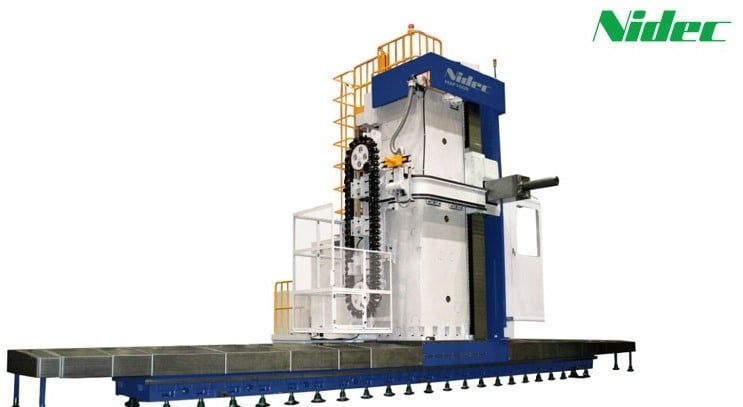

| Item / Model | MAF130R | MAF150R |
|---|---|---|
| Axis travel | ||
| Column, horizontal X-axis (mm) | 5,000 to 21,000 | |
| Saddle, vertical Y-axis (mm) | 2,500 (opt. 3,000, 3.500) | |
| Ram, in/out Z-axis (mm) | 700 | |
| Boring spindle, in/out W-axis (mm) | 700 | |
| Boring spindle diameter (mm) | ⌀130 | ⌀150 |
| Boring spindle end taper | No. 50 | |
| Milling spindle diameter (mm) | ⌀225 | |
| Spindle speed (min-1) | 7 to 3,000 | |
| Spindle motor output (kW) | 30/37 (continuous/30 min) | |
| Machine weight (kg) | 35,000 | |
