Mô tả sản phẩm
Medium-size gear hobbing machine Large-size gear hobbing machine Horizontal gear hobbing machine

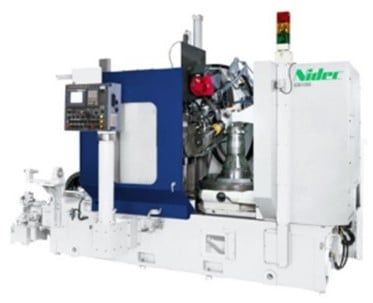

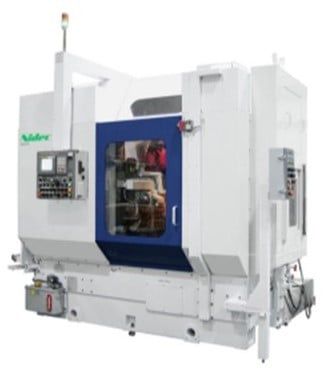

GD30 GB100 GBH18
SPECIFICATIONS:
| Item | Vertical CNC gear hobbing machine | Horizontal CNC gear hobbing machine | |||
|---|---|---|---|---|---|
| Model | GD30 | GD50 | GB63 | GB100 | GBH18 |
| Max. workpiece diameter (mm) | ⌀300 | ⌀500 | ⌀630 | ⌀1,000 | ⌀180 |
| Max. module | 8 | 14 | 6 | ||
| Axial travel (mm) | 300 | 500 | 700 | ||
| Radial travel method | Column traveling | Column traveling | Hob saddle traveling | ||
| Hob and work centers distance (mm) | 40 to 340 | 50 to 625 | 30 to 155 | ||
| Hob | |||||
| Max. diameter × length (mm) | ⌀150 × 230 | ⌀210 × 240 | ⌀120 × 200 | ||
| Shift (mm) | 180 | 200 | 160 | ||
| Rotation speed (min-1) | 75 to 750 (opt. 120 to 1,200) | 30 to 225 (opt. 40 to 400) | 150 to 1,000 | ||
| Axial cutting travel (mm/min) | 1 to 1,000 | 0.1 to 300 | 1 to 400 | ||
| Indexing tooth number | 5 to 1,000 | 6 to 1,000 | 4 to 200 | ||
| No of contolled axes | 5 | 5 | 5 | ||
| Total electric power (kVA) | 33 | 33 | 20 | ||
| Machine weight (kg) | 10,000 | 10,500 | 16,000 | 18,000 | 7,000 |
