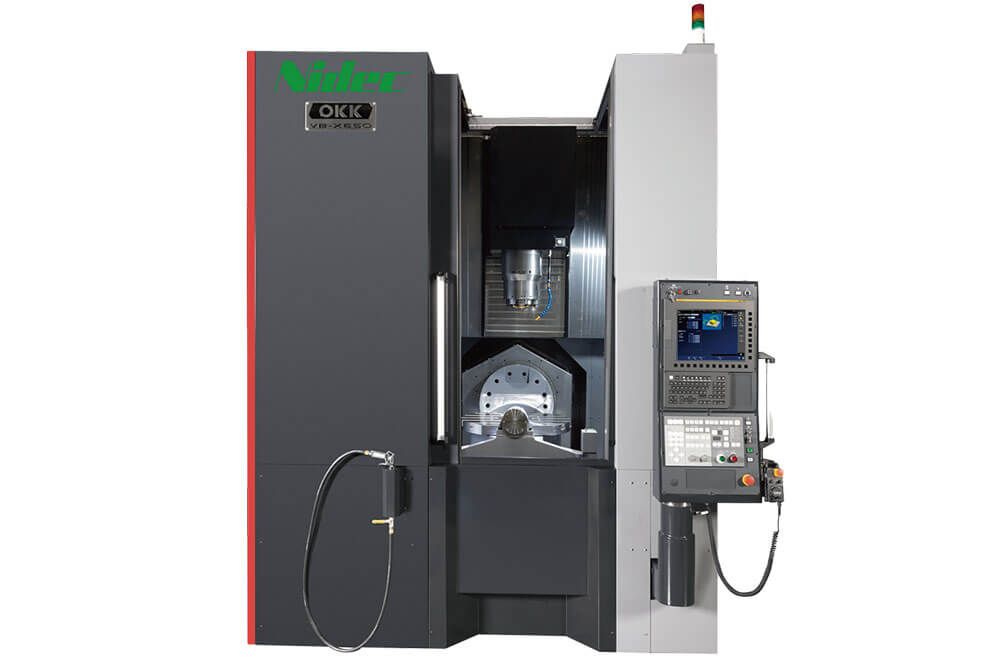

A compact five-axis machining model that boasts high-speed machining performance, high floor space efficiency, and high-level work performance
VC-X500’s successor, VB-X650 has a comprehensively revised structure, a faster feed axis (including its rotary axis, and an improved environmental thermal displacement resistance, combined with a further enhanced and already reputable floor space efficiency and accessibility to the table. All of these elements make VB-X650 capable of meeting higher-level demands from customers.

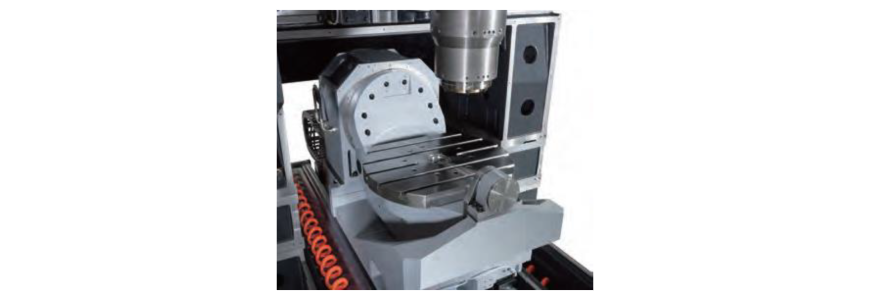

High Speed Machinability
With the straight-line axis’s feeding speed improved to 63m/min., and with the use of a direct drive motor (which does not require a mechanical speed-reducing system) for the rotary axis, this model is capable of backlash-free high-speed machining.

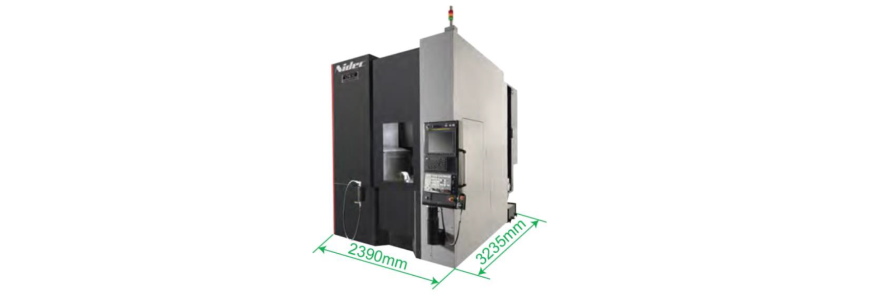

Floor-Space Efficiency
With a 850mm-long x-axis stroke and a 610mm-long y-axis stroke, the floor-space efficiency for machine installation against the x- and y-axis displacement (movement) has improved further, making VB-X650 a top-class product.
High-Level Workability
By shortening the distance to the center of its table to 565mm, this model enjoys better setup performance than before.
