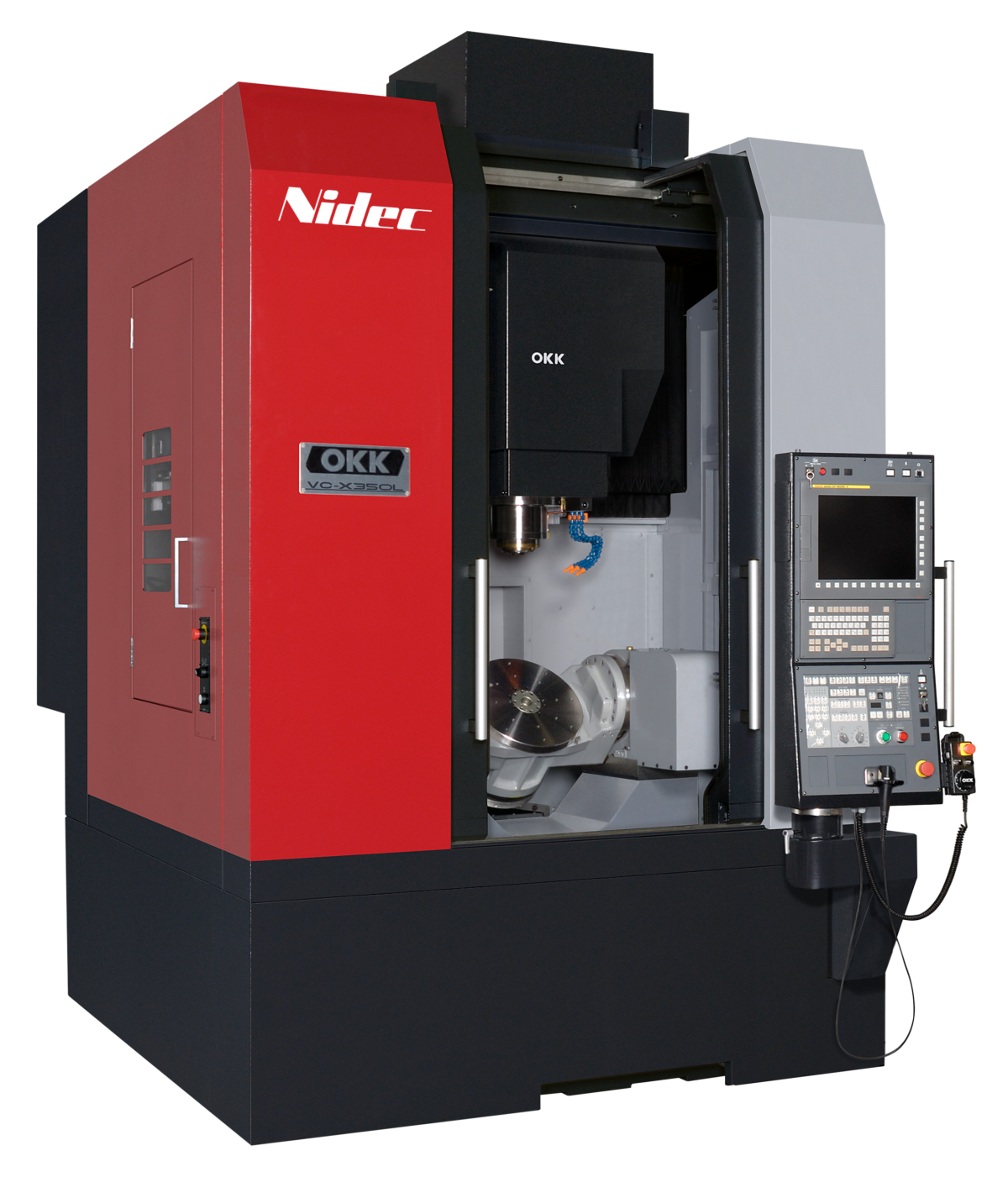

The OKK VC-X350L is a specialized 5-axis machining center developed from OKK’s advanced technologies. This machine eliminates loss of accuracy and burden on the operators caused by multi-setup operation and shortens lead time under process integration.
The VC-X350 is extremely rigid and features a table that can handle titanium and other hard metals. It is ideal for integration with an Automatic Work Changer, and includes a magazine with 60 capacity.

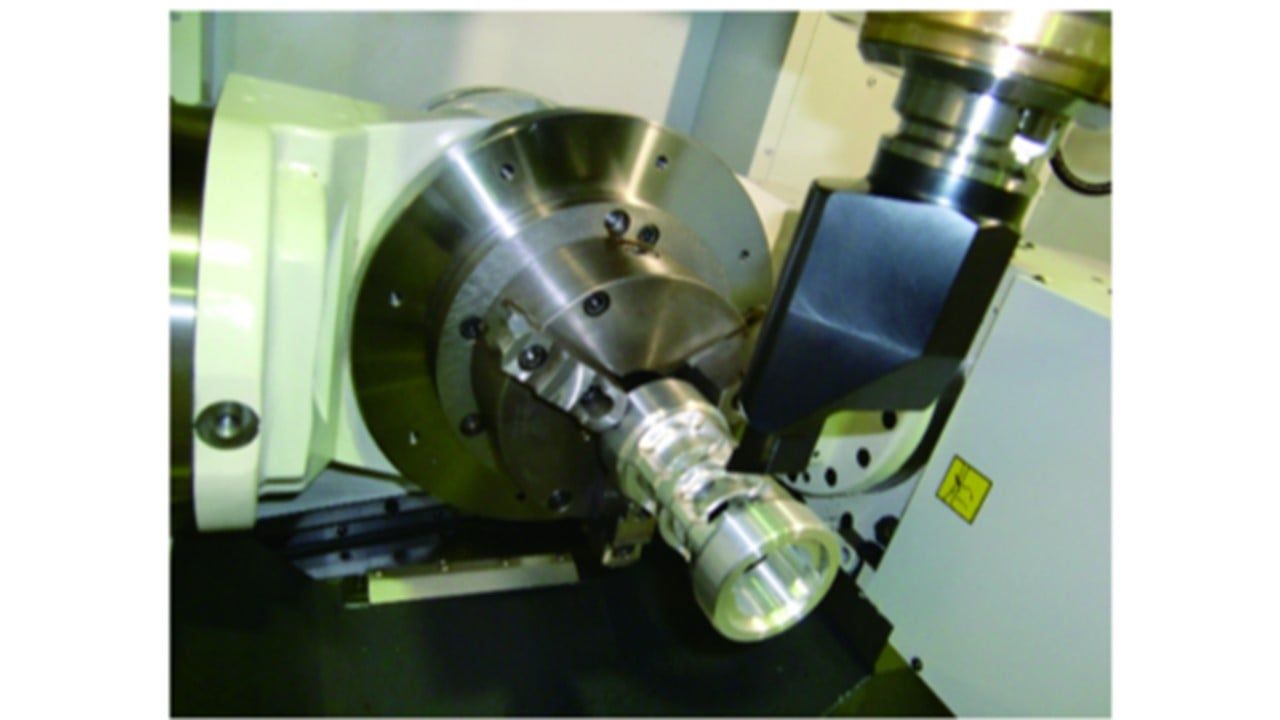

DD-Style Round Table and a Unique Spindle Clamp Mechanism
With the use of a DD-style table and a unique spindle clamp mechanism, and with the mother unit’s performance, this product demonstrates sufficient precision and rigidity in lathe turning.

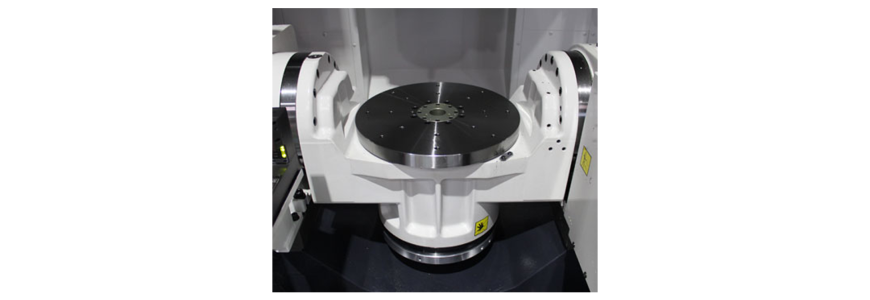

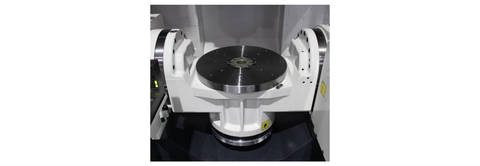

Table Workability
With three hydraulic and pneumatic ports installed as standard, this machine can handle jigs simply by adding a valve and a hose.
