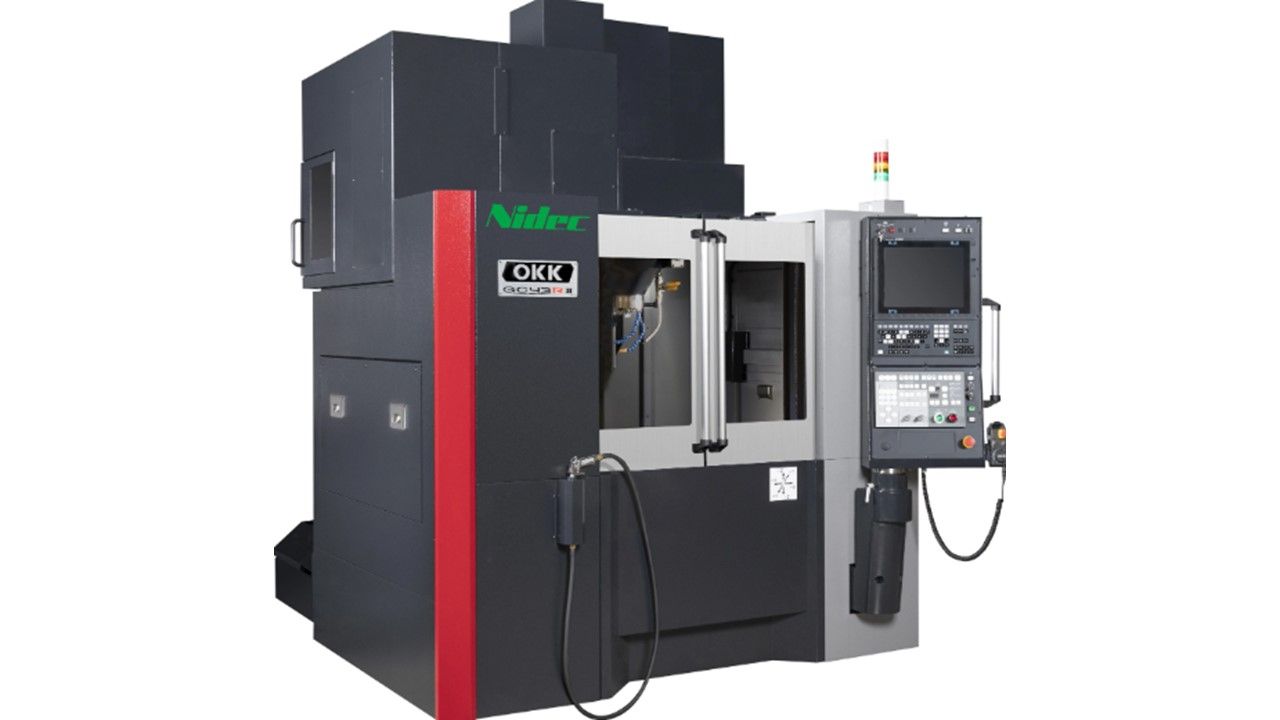

This is a grinding center, which can machine high-hardness and brittle materials, elevates grinding to a new level!
This powerful machining center produced by Nidec OKK comes with grinding function, and can machine high-hardness an brittle materials. Capable of machining a variety of materials, GC53RII boasts high efficiency and accuracy. In addition, with an automatic grinding stone-based tool exchanger and an NC function, this model promotes the automation of the grinding process.

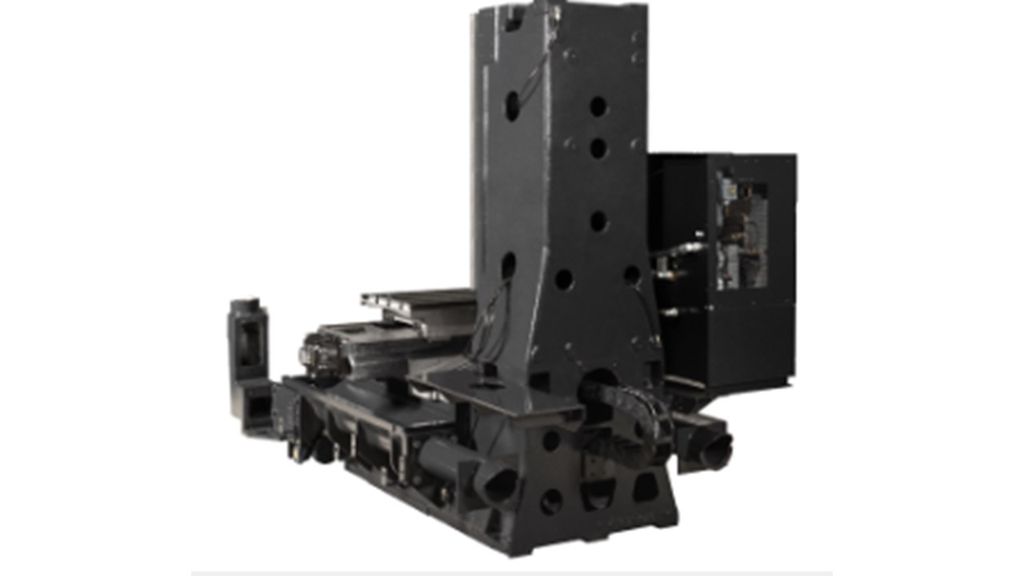

Base
This bestselling high-rigidity MC, made based on the VM Series models, has in itself all GC functions available, and is the best model for ferrous metal grinding.

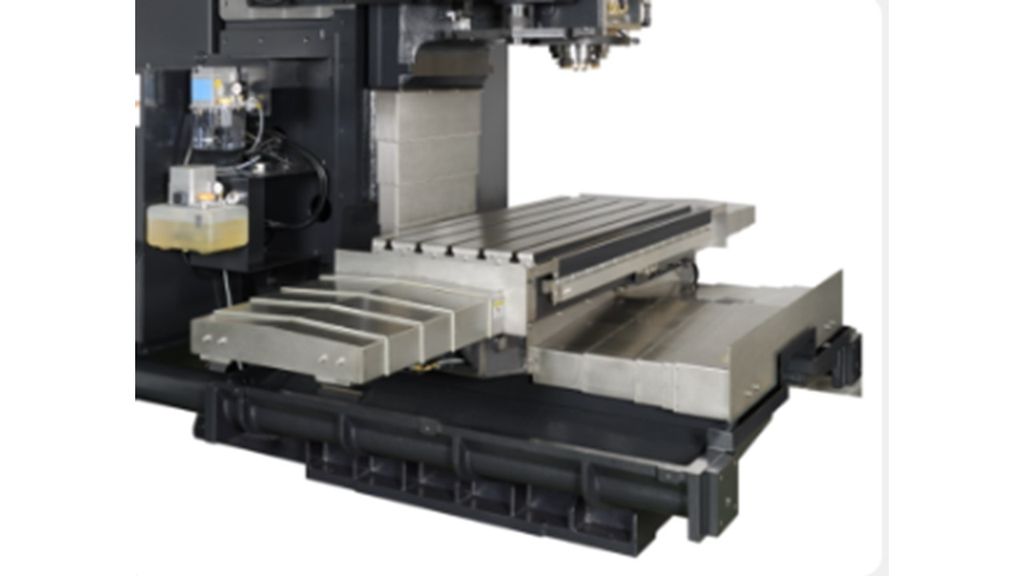

Table
This model’s x-, y-, and z-axes adopt stainless telesco covers, and the y-axis uses as standard a cover to protect ball screws, maintaining the machine’s accuracy perfectly.

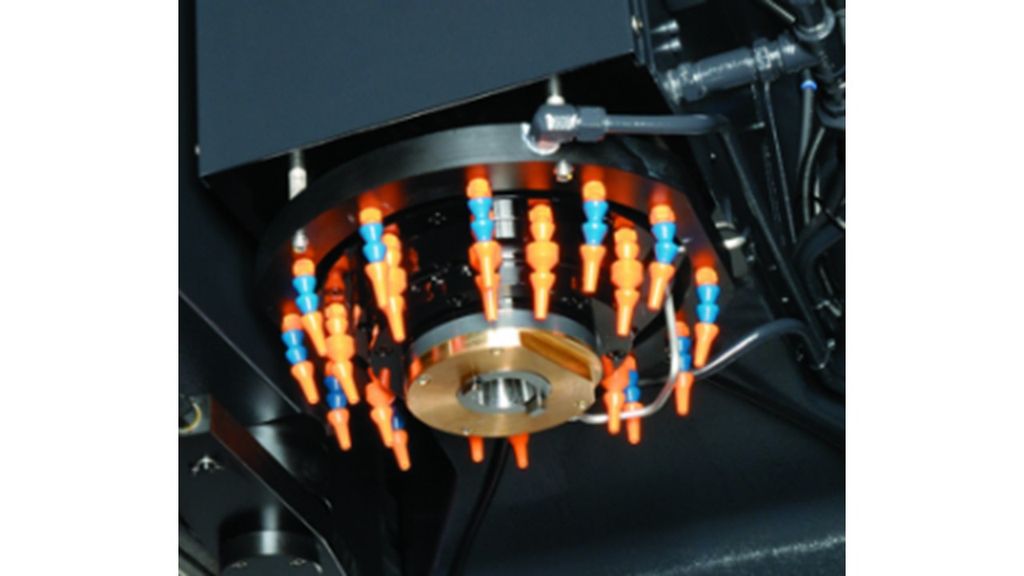

Spindle
This model is equipped, as standard, the No. 40, 14000min-1MS spindle, which is well received with the VM Series. GC53R and GC76R can install the No. 50, 12000min-1MS spindle (OP). This model demonstrates its strength especially in ferrous material grinding, which requires rigidity.
