Mô tả sản phẩm

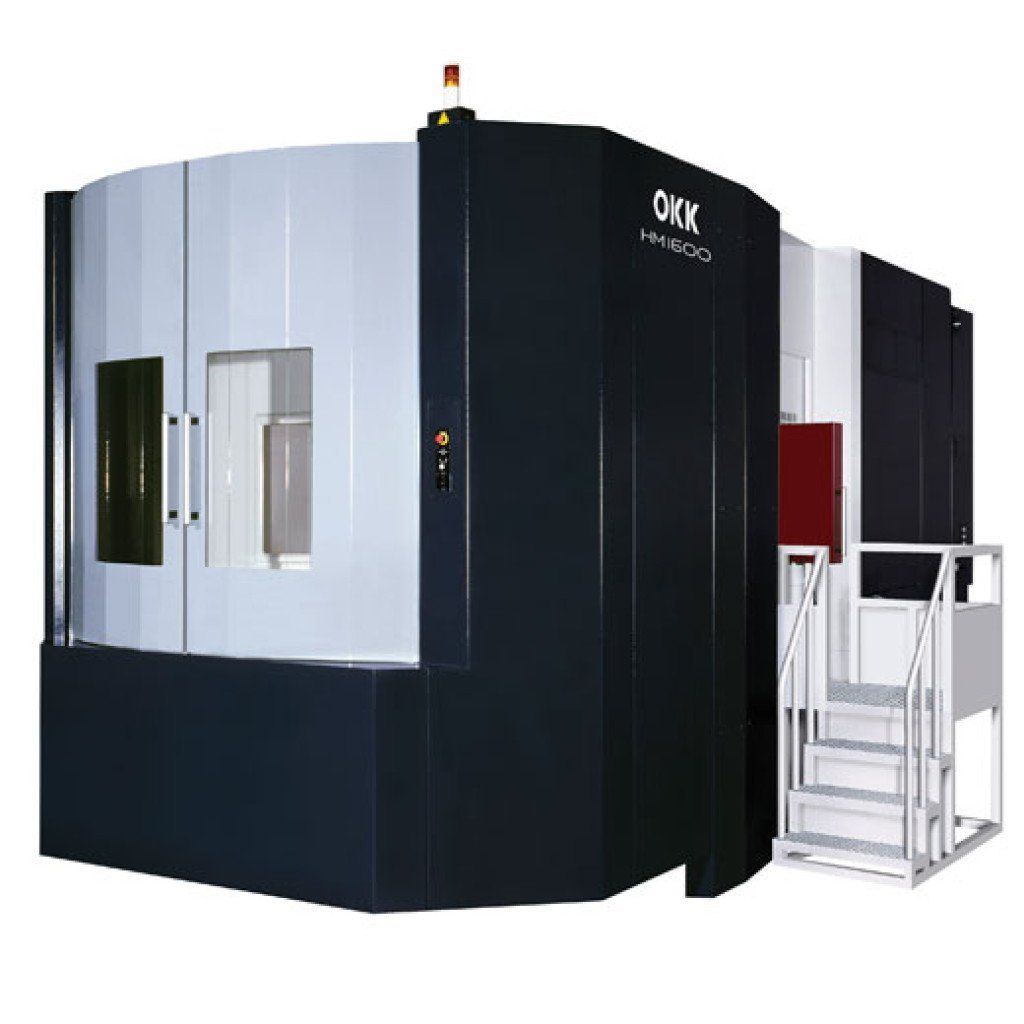

New concepts in high-speed CNC machining offer drastic improvements in speed, rigidity and durability over competing machines. The OKK HM Series offers the fastest and most powerful horizontal CNC machines in their class, while providing easy access, maintenance, and operation.
Heavy duty cutting performance is delivered by incorporating a rigid frame of think box-shaped structure to foundation the large linear roller guides designed for very heavy loads. High-speed rotation APC and ATC by synchronization cam (OKK patented) delivers smooth performance and production efficiency.

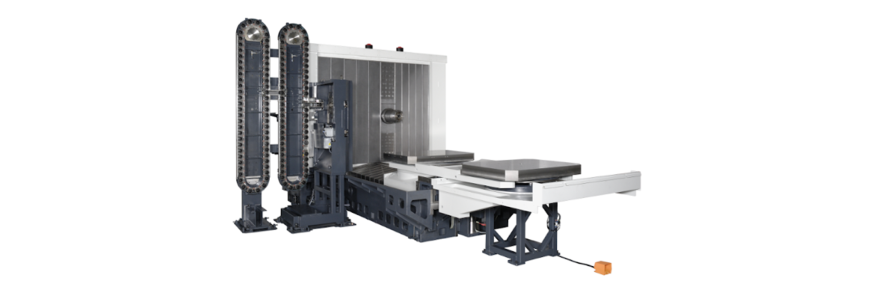

Structure
This model adopts twin ball screws for its y- and z-axes to minimize vibration, while shortening machining time; improving machining accuracy, quality of machining surfaces, and contouring accuracy; and extending tools’ durability.

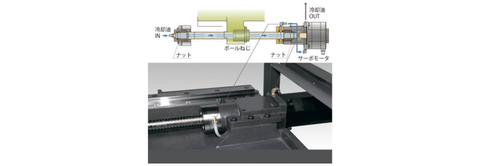

Cooling Ball Screws
This model adopts hollow ball screws for its x-, y-, and z-axes. Temperature-controlled oil circulates around ball screws, their support sections, and the motor-mounting surface to suppress thermal displacement, maintaining accuracy for a long period of time.
