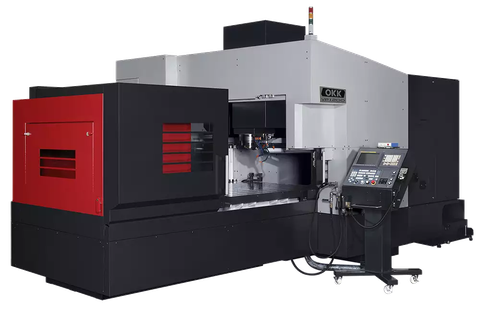

OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.
Highly Rigid and Precise
The machine’s main units are all of the box structure, making them highly rigid and precise. By the adoption of a linear roller guide, the model now boasts improved fine feeding features and circular machining accuracy. In addition, by using a double anchor system to support ball screws, the model’s lost motion is minimized. Additionally, with the adoption of a hollow cooling structure for ball screws, combined with other measures such as using a coolant shelter and correction of thermal displacement on the spindle’s head, this model’s machining accuracy is stabilized, while the HQ control improves and stabilizes this product’s machining accuracy.

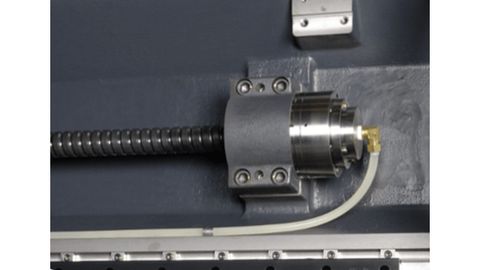

Ball Screw-Bases Hollow Cooling Structure
By adopting a hollow cooling structure for ball screws, the thermal displacement caused by high-speed axis transfer is successfully minimized in this model. Additionally, to prevent coolant from covering the main unit directly, this model has a coolant shelter as standard, ensuring perfect anti-thermal displacement measures.
