Mô tả sản phẩm

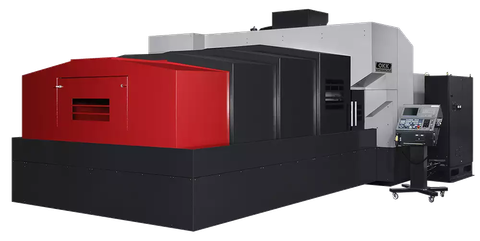

The VP Series Bridge style design of the OKK VP3100 maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, offering operator accessibility with minimal floor space.

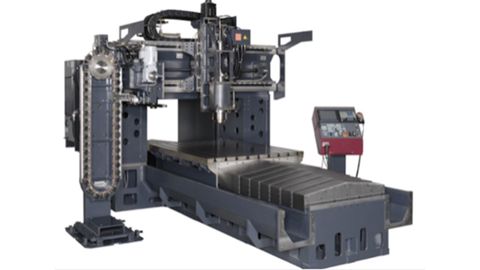

Structure
The machine’s main units are all of the box structure, making them highly rigid and precise. By the adoption of a linear roller guide, the model now boasts improved fine feeding features and circular machining accuracy. In addition, by using a double anchor system to support ball screws, the model’s lost motion is minimized.
Ball Screw-Bases Hollow Cooling Structure
Combined with a wide-range high-output motor, this motorized spindle (MS) has a significantly improved cutting performance. Its startup time is merely 1.5 seconds (OP)* from a standstill to 12,000min-1. In addition, a high-speed spindle (20,000min-1) is available as an option. *When the spindle motor’s horse power is increased (OP).
