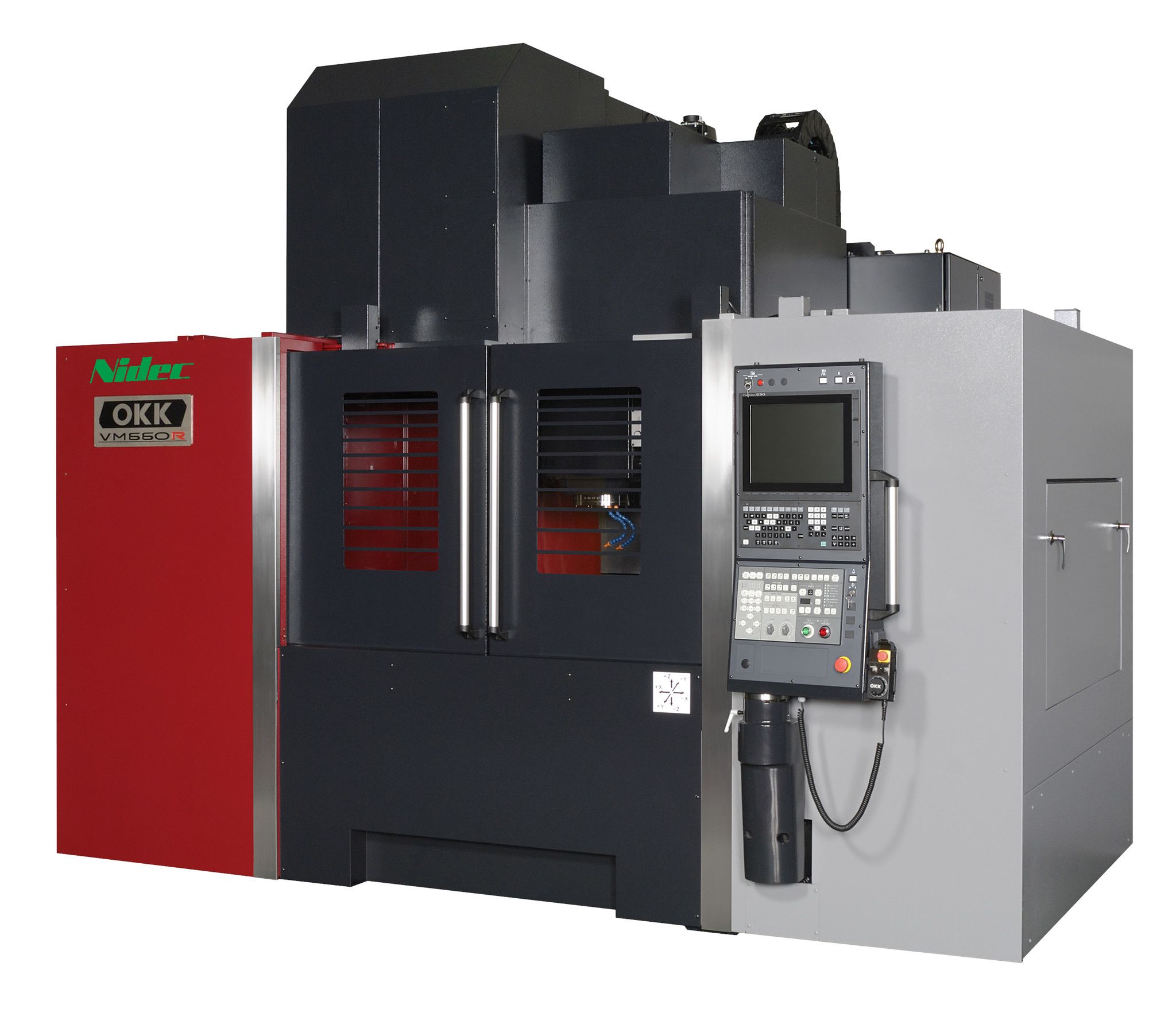

This model’s main unit adopts a high-rigidity box-type structure, while each axis sliding surface uses a sturdy, rectangular sliding guide, to improve the model’s vibration damping performance. In addition, with the adoption of a three-level gear and a large-diameter bearing, VM660R can efficiently process dies and automotive and airplane components that require deep cut.

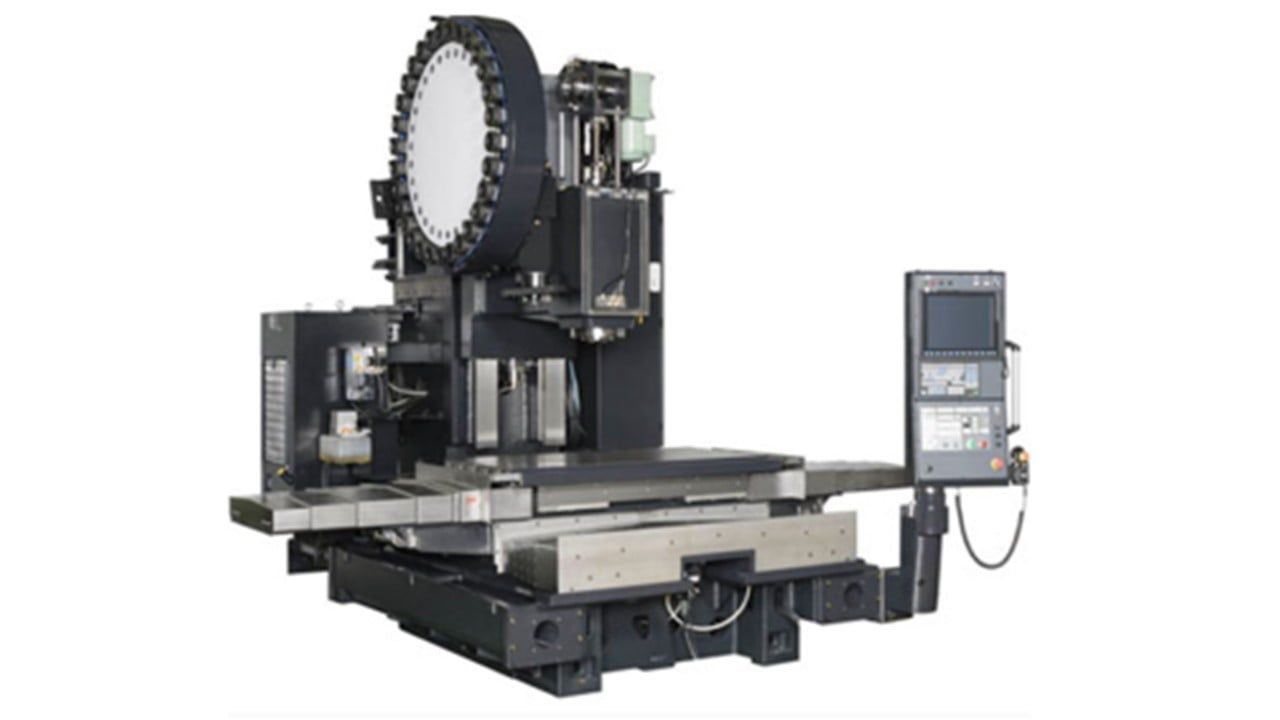

Column Base
Spindle

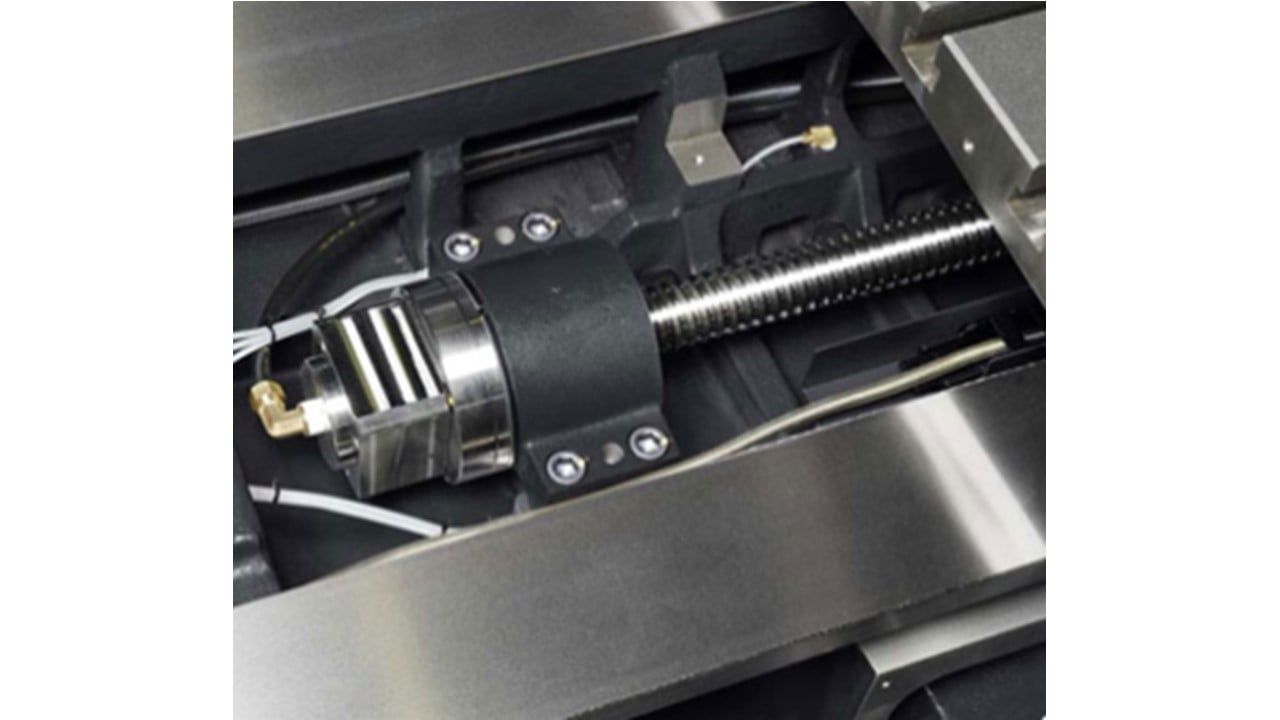

This model has perfect ant-thermal displacement measures in place. The spindle head’s main unit has a side wall cooling function, while the ball screws adopt a hollow cooling structure, and, to suppress the effects of chips and coolant heat on its machining accuracy, this model has on its bed section a trough exclusively for coolant.

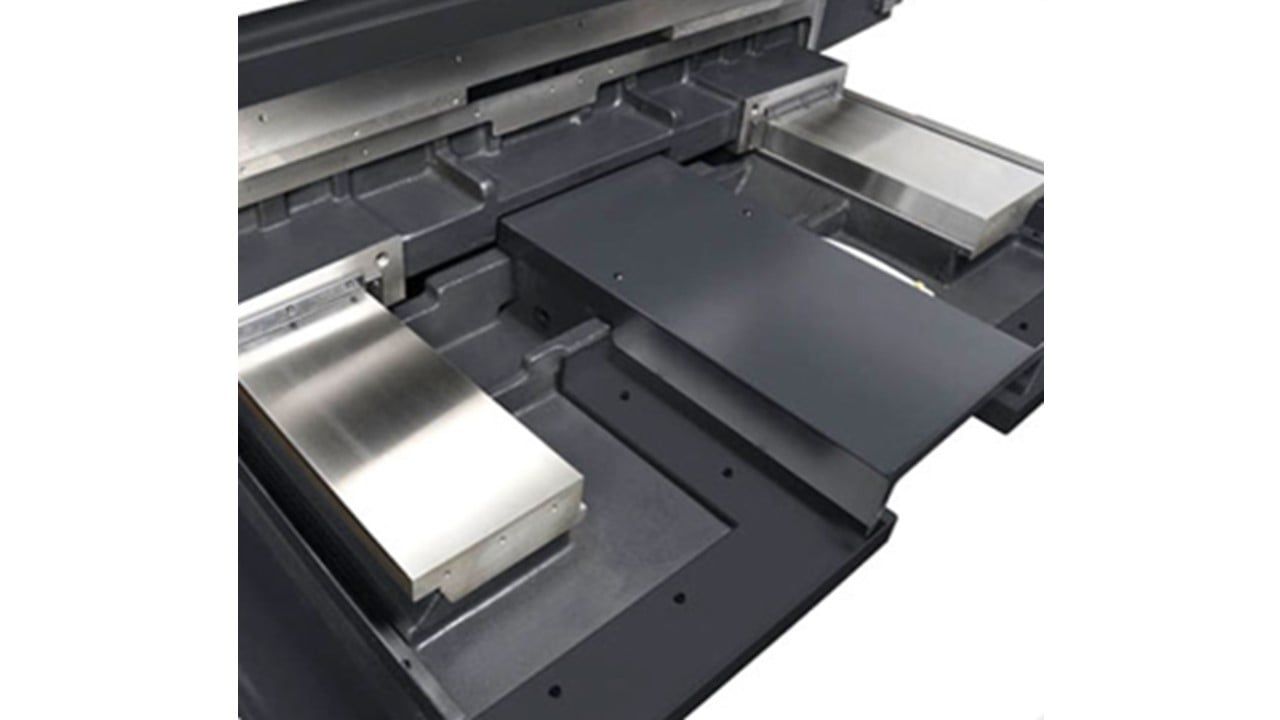

Box guide way
This model achieves a best-in-class deep-cut performance that enables the high-efficiency machining of difficult-to-cut and other materials!
