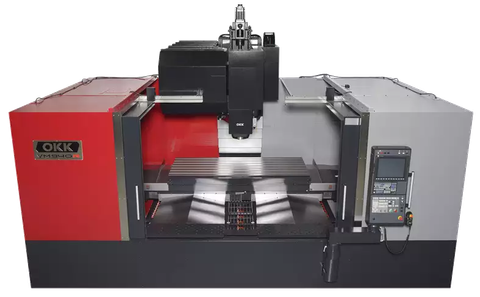

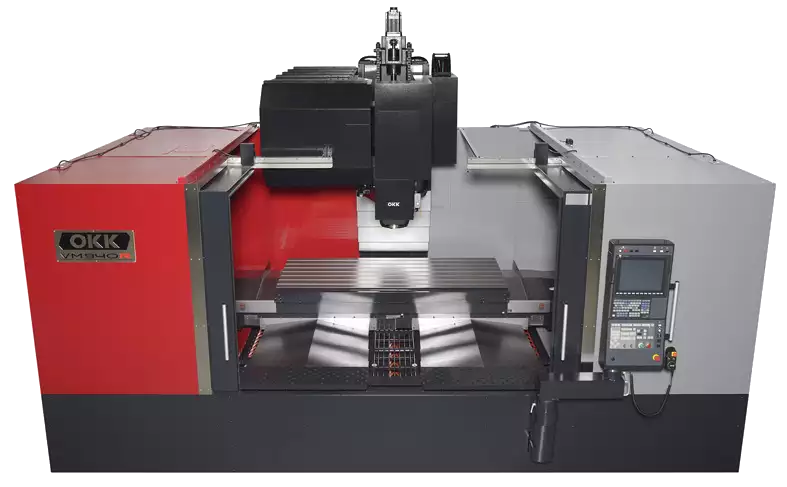

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and accurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.

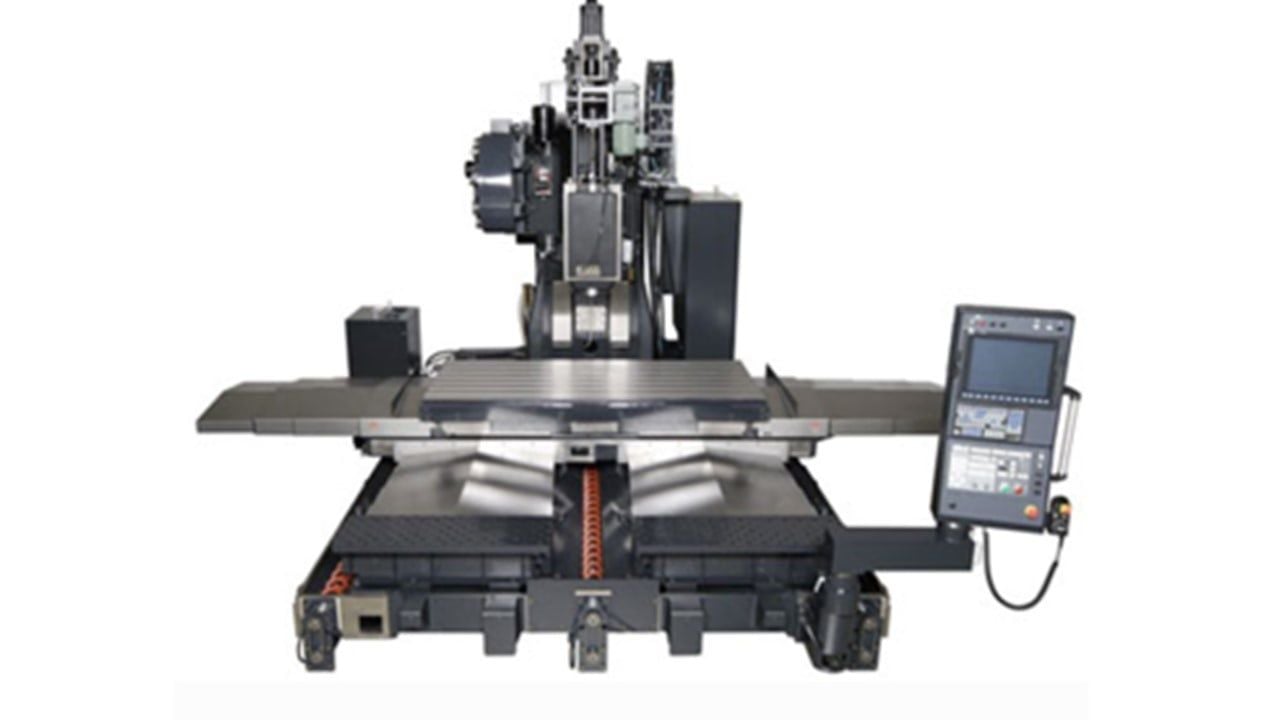

Column Base
This model can machine large difficult-to-cut and other materials efficiently, and is of a high rigidity structure to achieve a high workability!

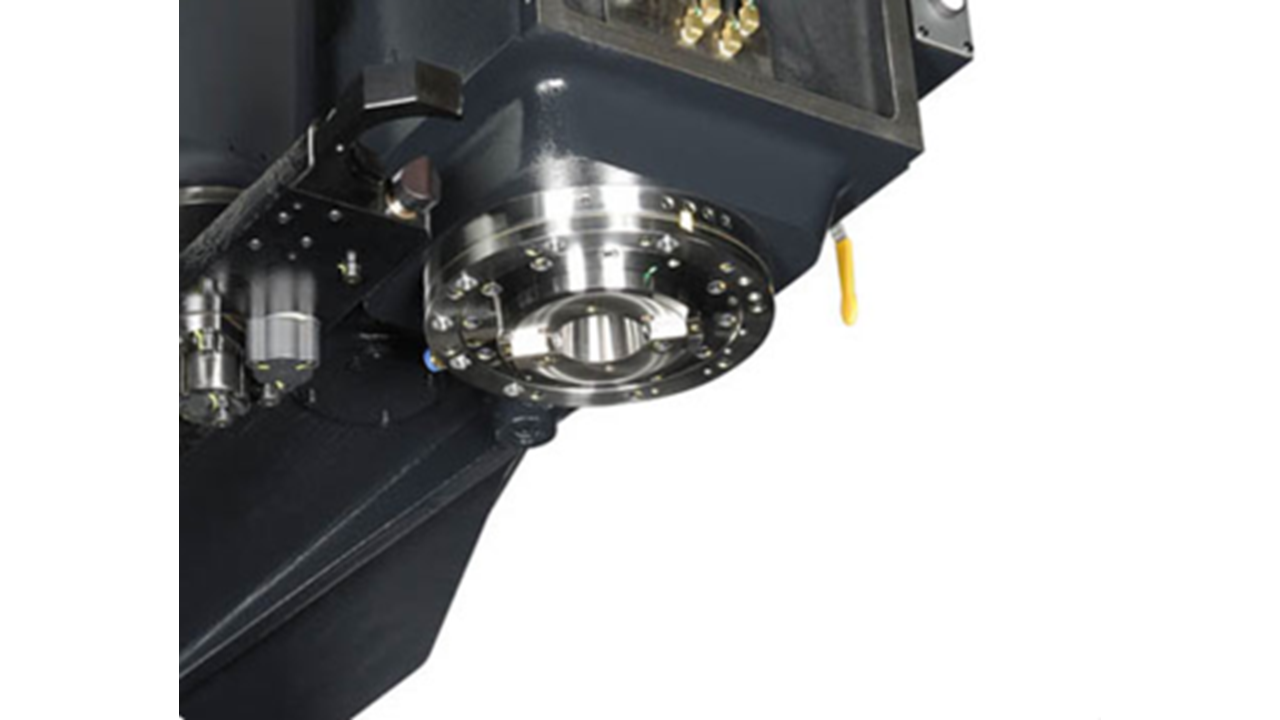

Spindle
By adopting a large-diameter bearing for its gear spindle and a three-gear system, this model achieves a maximum torque of 1,679 Nm in a low-speed area! (Option)

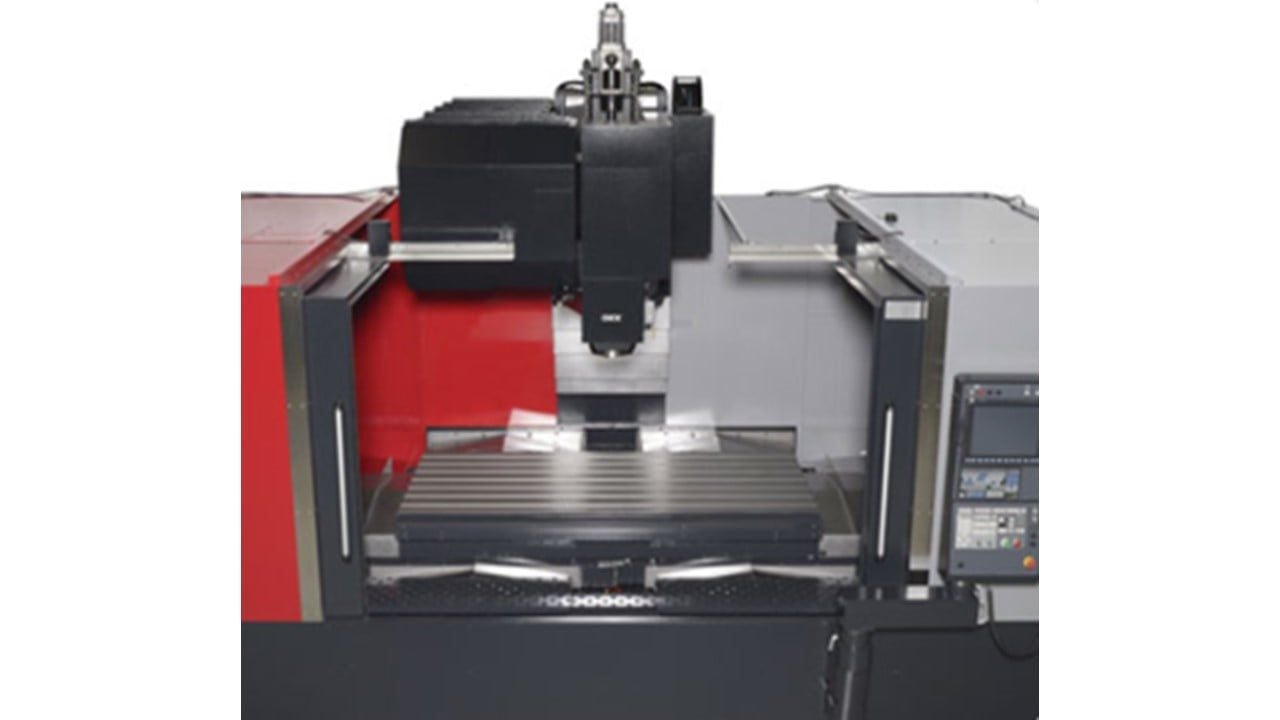

Table
This model has wide steps as standard so that the operator can enter inside it easily. With its door that opens all the way up to its ceiling, this machine can have works loaded and unloaded smoothly with a crane.
