NIDEC - TABLE/COLUMN TRAVELING OPPOSED HORIZONTAL BORING MILLS - MAF150S-T/MAF150S-C
Thương hiệu: NIDEC
Mô tả sản phẩm

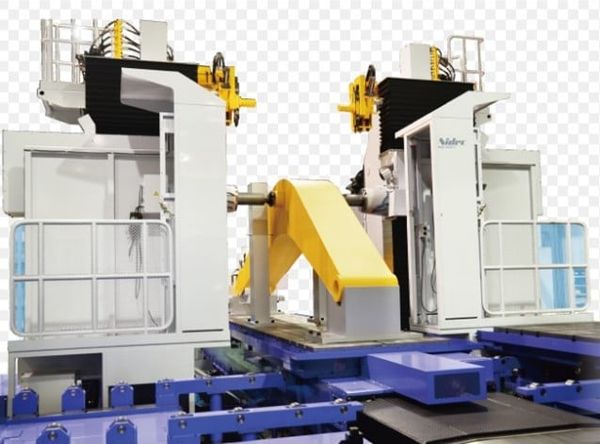

NIDEC offer a product lineup of table traveling type and column traveling type. These products are opposed machines that can be used in various production lines according to customer needs.

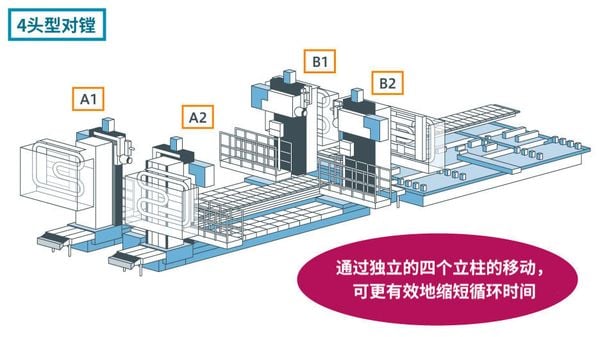

The variety of layouts, such as a 4-head type opposed machine with 4 independent columns, greatly improves the productivity of machining large parts.
SPECIFICATIONS:
| Item / Model | Table traveling typeMAF150S-T | Column traveling typeMAF150S-C | |
|---|---|---|---|
| X-axis travel amount (mm) | 7,500 to 10,500 (table traveling) | 6,000— (column traveling) | |
| Y-axis travel amount (mm) | 1,500-2,500 | ||
| Z-axis travel amount (mm) | 700 (boring) | ||
| Boring spindle diameter (mm) | 150 (taper50) | ||
| Spindle motor (kW) | 22/30 | ||
| Spindle speed (min-1) | 25 to 2,500 (opt. high torque specification 20 to 2,000) | ||
| Spindle torque (Nm) | 1,719 (opt. high torque specification 2,149) | ||
| Rapid traverse rate | X-axis (mm/min) | 24,000 | |
| Y-axis (mm/min) | 20,000 | ||
| Z-axis (mm/min) | 10,000 | ||
| NC device | FANUC 31i (1 NC, 1 control panel + 1 PG) | FANUC 31i (2 NCs, 2 control panels) | |
| [APC] | |||
| Max. loading capacity (ton) | 12 | 10 | |
| Pallet size | 1,250 × 6,000, 1,250 × 7,000, 1,250 × 8,000, 1,500 × 8,000, 1,500 × 9,000 | ||
| Exchange method | Short edge type | Cross type | |
| APC hours (minutes) | 1 | 3.5 | |
