Mô tả sản phẩm
- The MAF-EII series are designed to machine larger size workpieces with higher accuracy.
- The best-in-class spindle performance

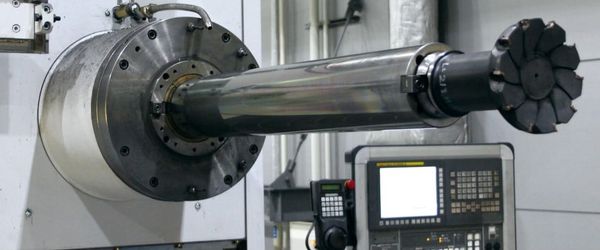

- The extension of the boring spindle is 800 mm, the best in its class
- Quick axis movement can shorten non-cutting time
SPECIFICATIONS:
| Item / Model | MAF130EⅡ | ||||||
|---|---|---|---|---|---|---|---|
Boring spindle diameter (mm) | φ130 | ||||||
Table |
| ||||||
Working area (mm) | 1,800×2,000/2,000×2,200/2,000×2,500 | ||||||
Indexing | Indexing at every 0.0001 deg. | ||||||
Loading capacity (kg) | 20,000 | ||||||
Axis travel |
| ||||||
Table, horizontal X-axis (mm) |
| ||||||
Spindle head, | 2,300 | ||||||
Column, in/out Z-axis (mm) | 1,600 | ||||||
Boring spindle, in/out W-axis (mm) | 800 | ||||||
Spindle head |
| ||||||
Spindle speed（min-1） |
| ||||||
Spindle motor output (continuous/30 min) （kW） | VAC 30/37 | ||||||
ATC tool storage capacity (pcs) | 50（opt. 80、100） | ||||||
Machine weight（kg） | 45,000/45,500/46,000 | ||||||
