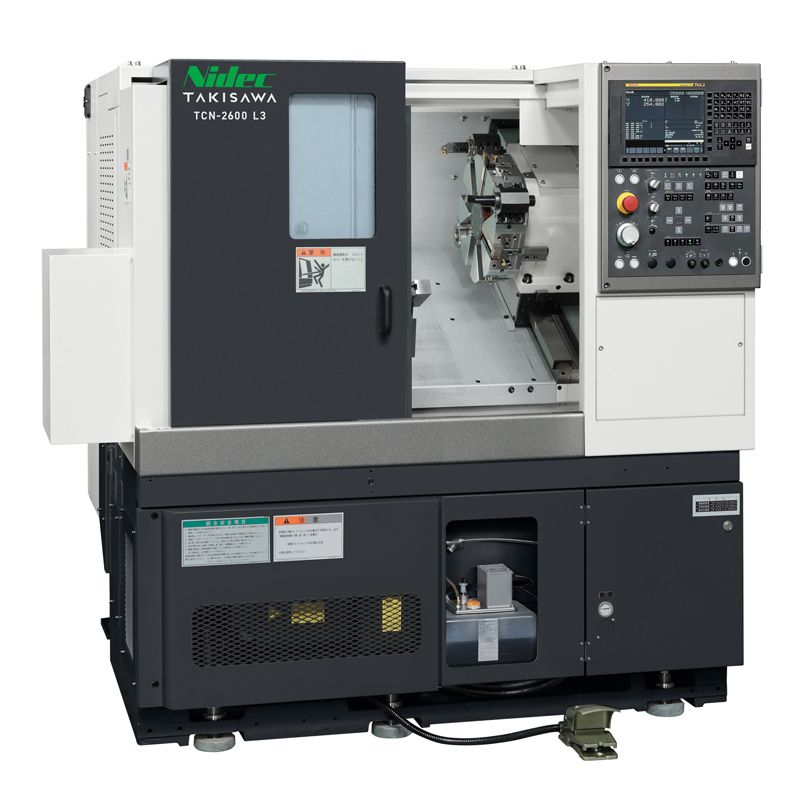

NIDEC TAKISAWA - CNC LATHE - TCN-2600 (1 SPINDLE, 1 TURRET)
Thương hiệu: NIDEC TAKISAWA
Loại: MÁY TIỆN CNC
Mô tả sản phẩm
- All axes are equipped with durable sliding surfaces (square slides)
- It is equipped with a wide-area spindle motor that exerts sufficient torque from low to high speed
- The tool post is available with 8 angles (T8) for the turning turret and 12 angles (T12M) for the milling turret
- Compatible with hydraulic tailstock (optional setting)

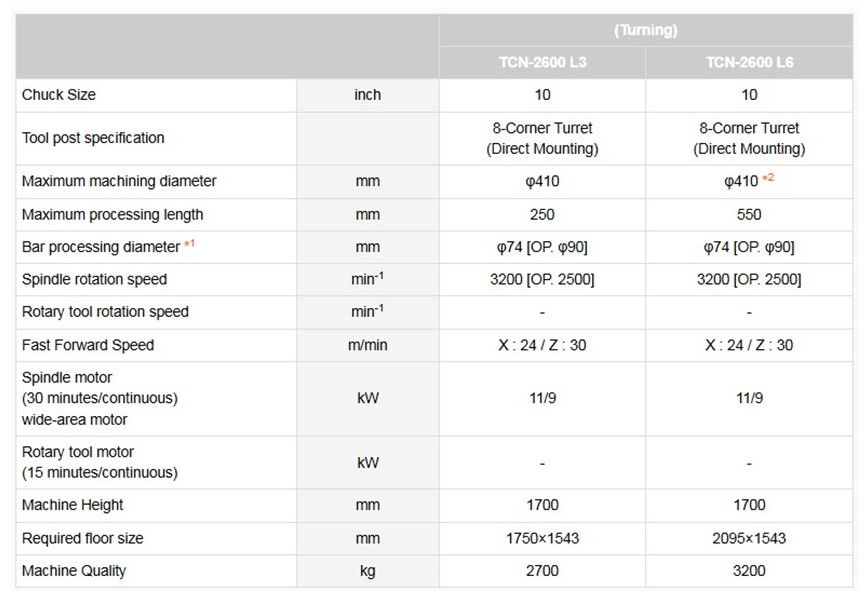

*1) Depending on the chuck and cylinder to be installed, the diameter of the bar may change.
*2) In the case of L6 specifications, the maximum machining diameter may be limited depending on the workpiece size. For details, please refer to "About the processing range" in the product catalog.
*1) Depending on the chuck and cylinder to be installed, the diameter of the bar may change.
*2) In the case of L6 specifications, the maximum machining diameter may be limited depending on the workpiece size. For details, please refer to "About the processing range" in the product catalog.

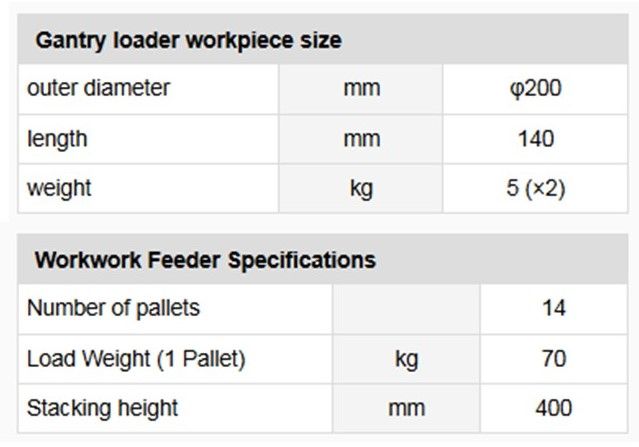

*TCN-2600G meets your automation demands.
Automatic production system with high-speed gantry loader (compact turning cell) to increase utilization rate.
