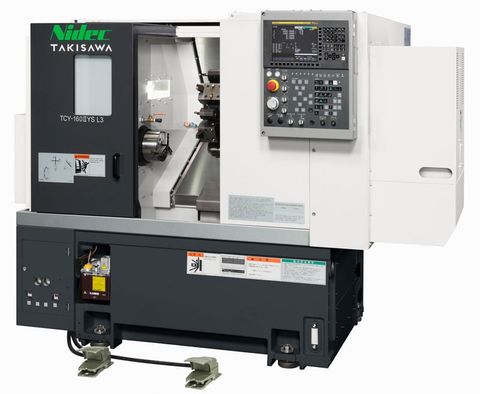

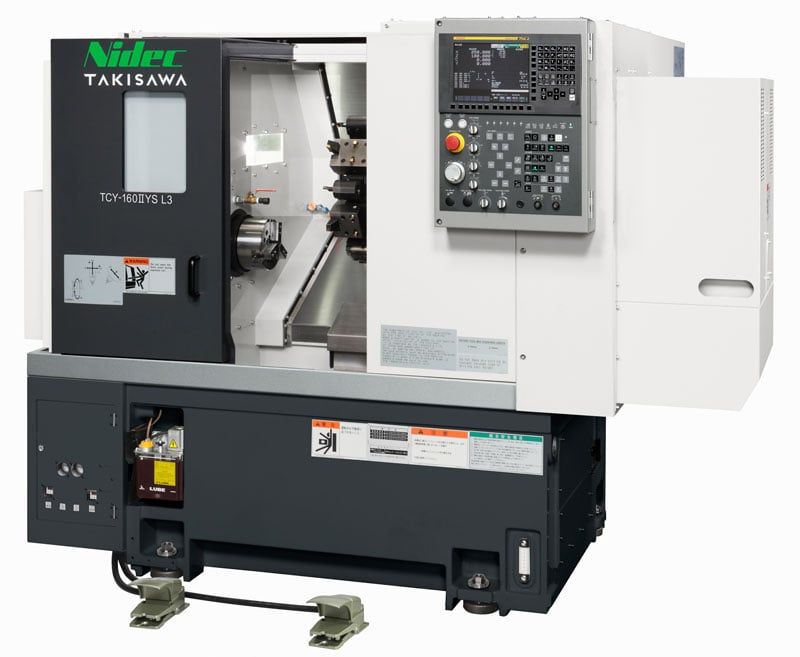

This is a compact composite lathe that integrates the turning of small parts and the cutting process with a rotary tool into one machine.
Milling and Y-axis control enable highly efficient process consolidation.

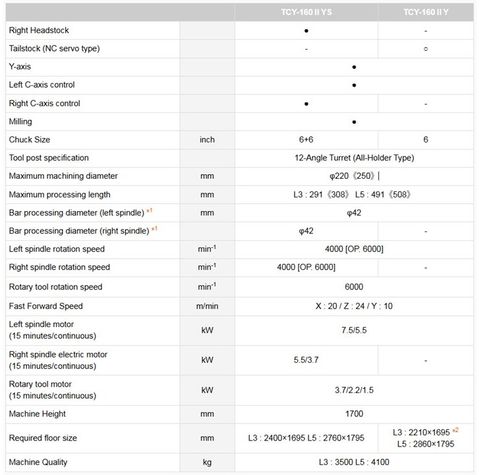

●: Standard ○: Optional - : No setting
《 》 is the BMT45 specification.
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) Dimensions when tailstock is attached.

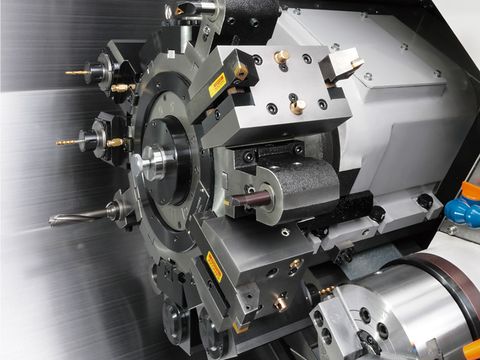

*Right Headstock (YS)

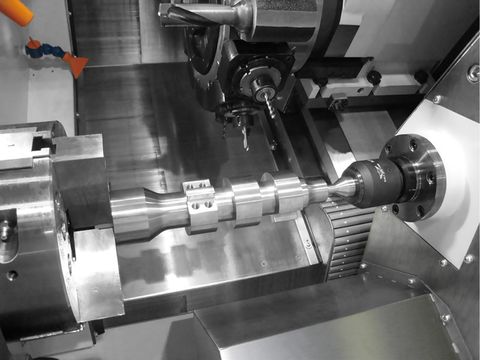

*NC Servo Tailstock (Y)
*Automation support (optional)
It supports continuous automatic operation with in-house gantry loaders and various peripheral devices. In addition, automation is possible by linking bar feeding equipment.
*Optional support
- TiwaP-1 Interactive Specifications

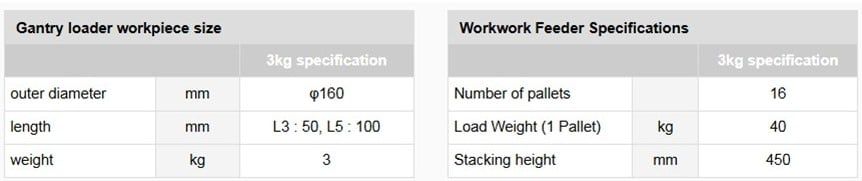

- Gantry Loader Specification
- Bar Feeder Specifications
