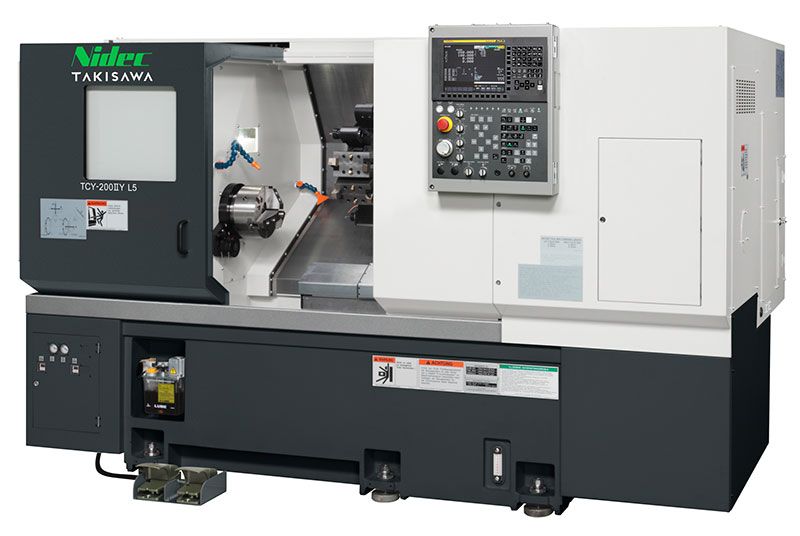

This is a compact composite lathe that integrates the turning of small parts and the cutting process with a rotary tool into one machine.
Milling and Y-axis control enable highly efficient process consolidation.

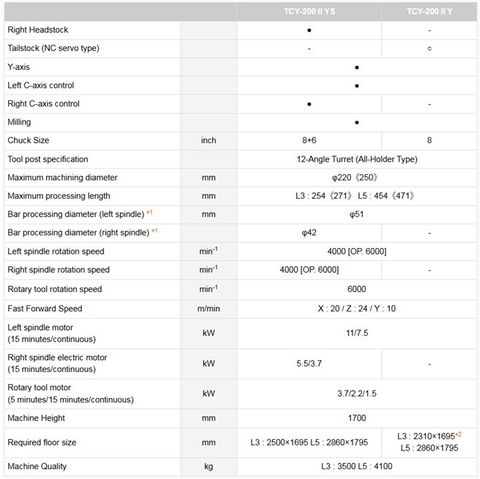

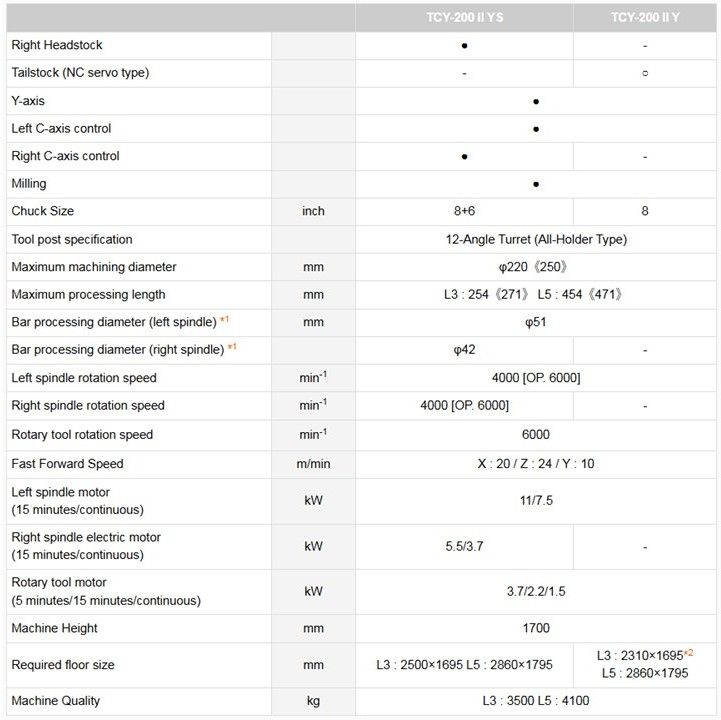

●: Standard ○: Optional - : No setting
《 》 is the BMT45 specification.
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) Dimensions when tailstock is attached.

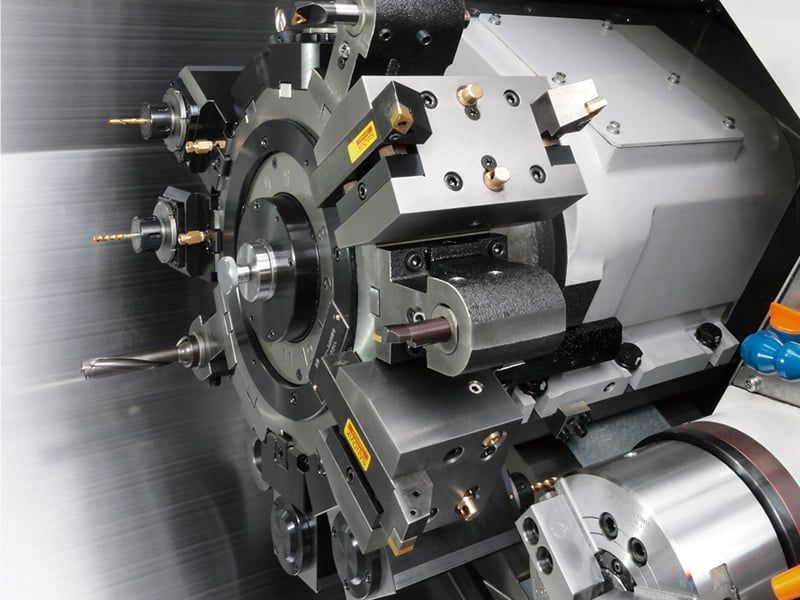

*Right Headstock (YS)

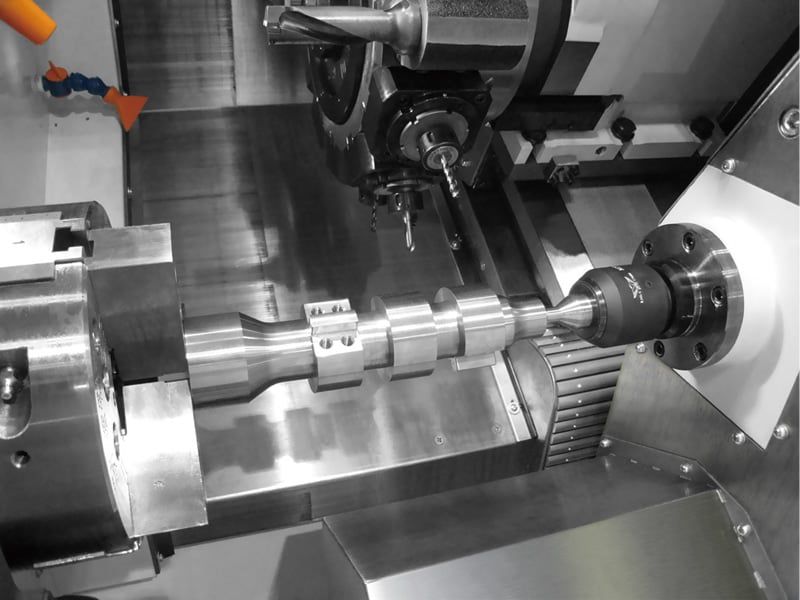

*NC Servo Tailstock (Y)

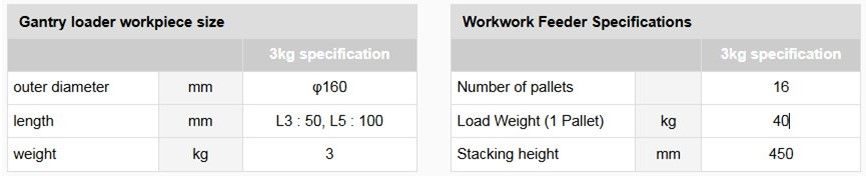

*Automation assistance with gantry loader (optional)
We support continuous automatic operation with our own gantry loaders, workpiece feeders, and peripheral equipment (phase determination, cleaning, measurement, etc.). In addition, it supports automation with bar material feeding equipment.
*Optional support
- Tiwap-1 Dialogue Specifications
- Gantry Loader Specification
- Bar Feeder Specifications
