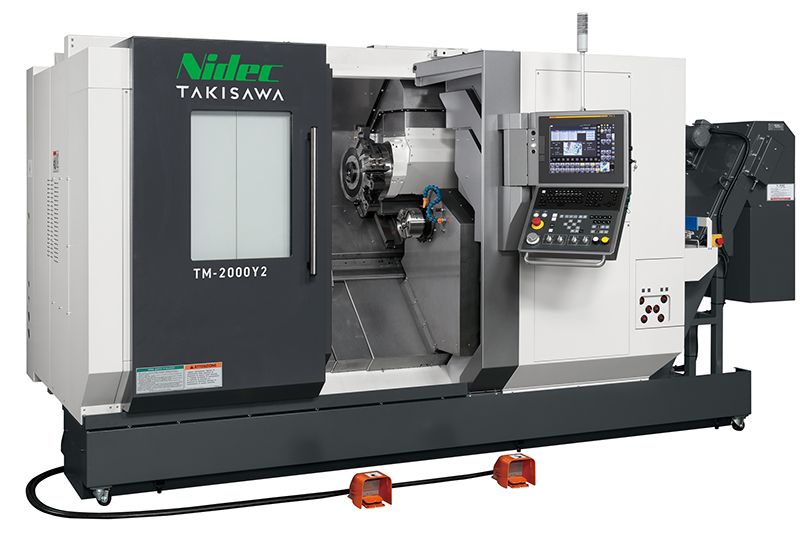

The processing diameter of the bar is φ51mm. Upper and lower Y-axis mounted and composite CNC lathes ideal for barwork. It supports in-flight automation of workpiece discharge, allowing for automatic discharge without worrying about floor space. It is a compact and productive product.

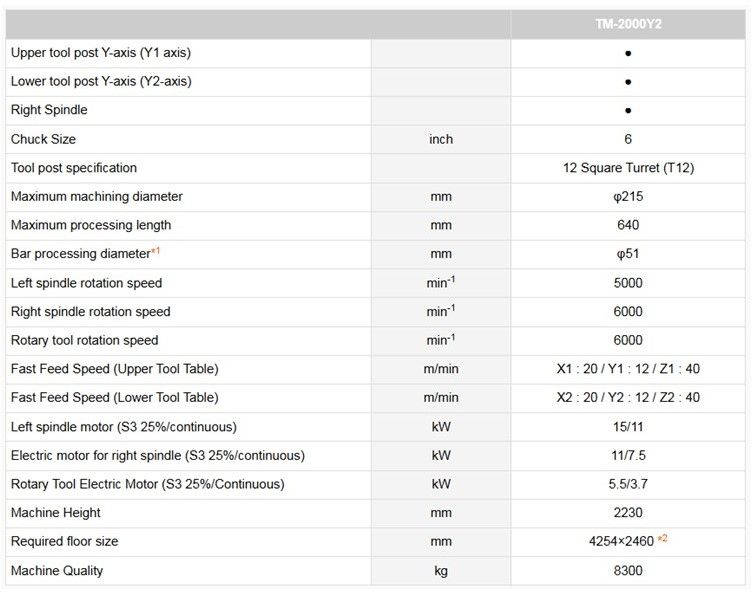

●:Standard - :No
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) Dimensions including oil pan, chip conveyor, and control panel.

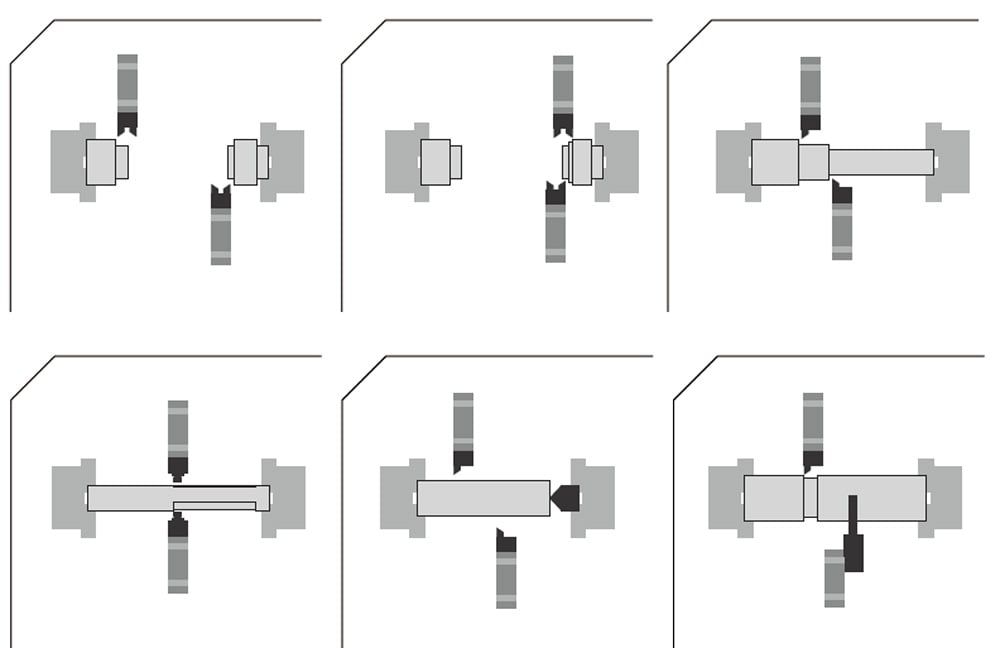

With a combined CNC lathe, you can cover all kinds of workpieces with a wide variety of machining variations.
*Feature
- High rigidity 45° slant bed
- Upper and lower Y-axis (Y1/Y2 axis: +45~-45mm)
- 15/11kW high-torque motor spindle
- Equipped with a high-output 5.5/3.7kw milling motor

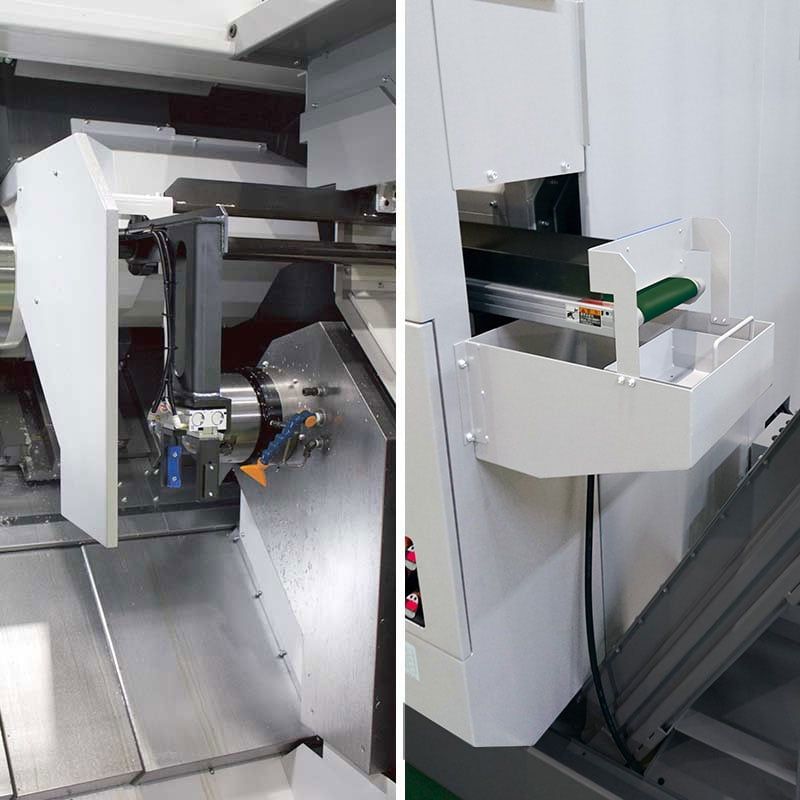

*Turnkey support (optional)
Automation is supported by an in-flight unloader and discharge conveyor.
