Mô tả sản phẩm

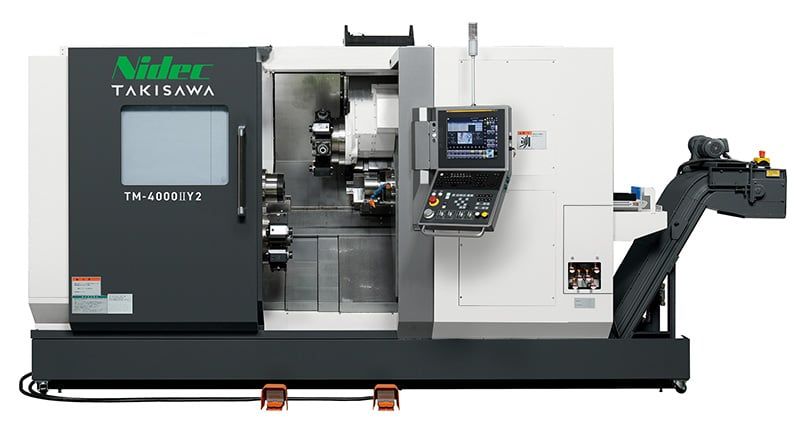

The rod processing diameter is Φ 82mm. A combined CNC lathe with upper and lower Y-axis that is ideal for workpieces. It supports in-flight automation of workpiece discharge, allowing for automatic discharge without worrying about floor space. It is a compact and productive product.

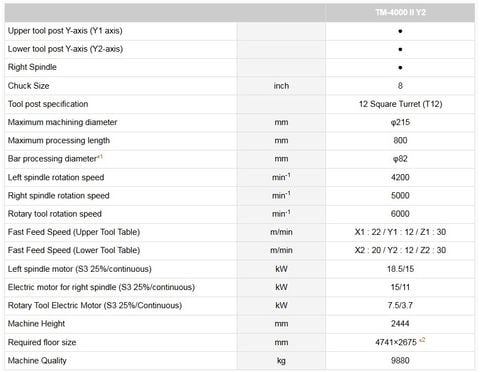

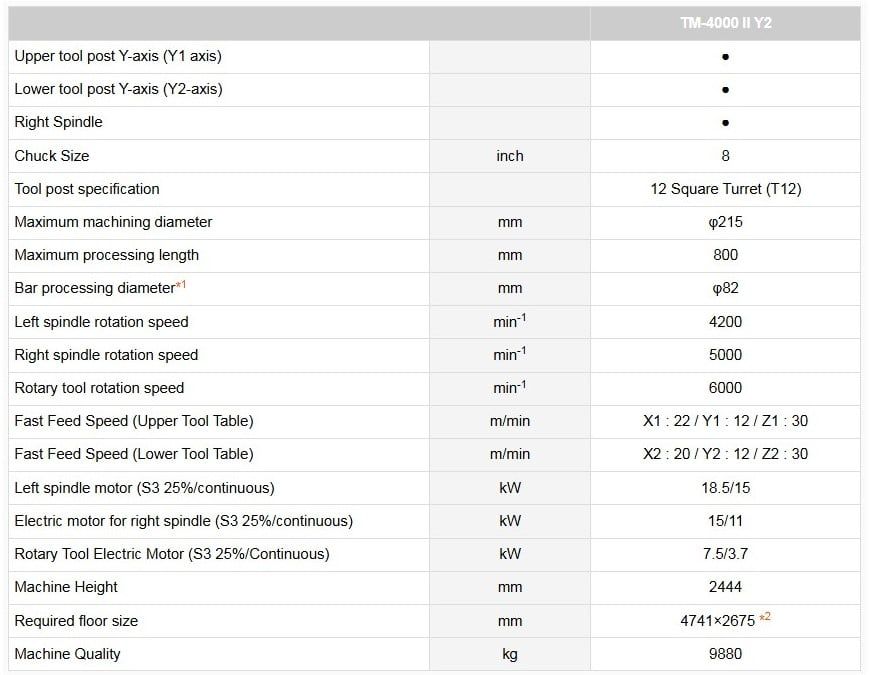

●:Standard - :No
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) Dimensions including oil pan, chip conveyor, and control panel.

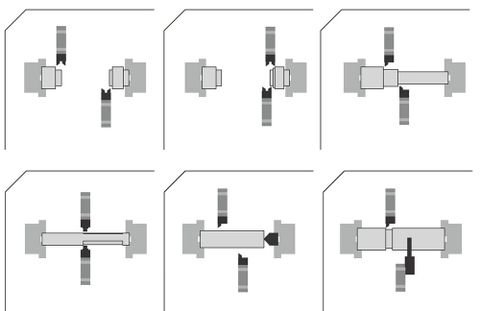

With a combined CNC lathe, you can cover all kinds of workpieces with a wide variety of machining variations.
*Feature
- High rigidity 45° slant bed
- Upper and lower Y axis (Y1 axis: +70~-50mm, Y2 axis: +30~-50mm)
- 18.5/15kW high-output, high-torque motor spindle
- Equipped with a high-output 7.5/3.7kw milling motor
*Turnkey support (optional)
Automation is supported by an in-flight unloader and discharge conveyor.
