Mô tả sản phẩm

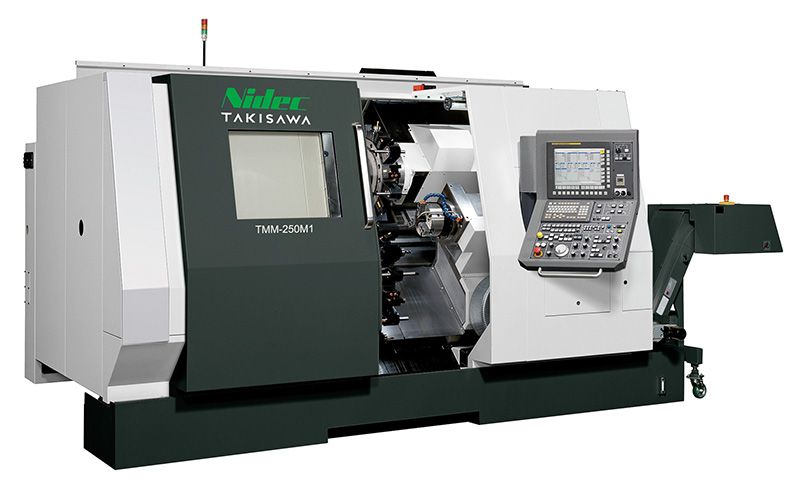

The Module-1 is equipped with a 15-angle milling turret with both turning and rotating tool cutting capabilities as standard.
It can perform milling operations with a milling power of 4000min-1/5.5KW and Y-axis control. The upper and lower 15-angle milling turret tool posts provide stable machining accuracy with high repeatability and a good centripetal indexing device.

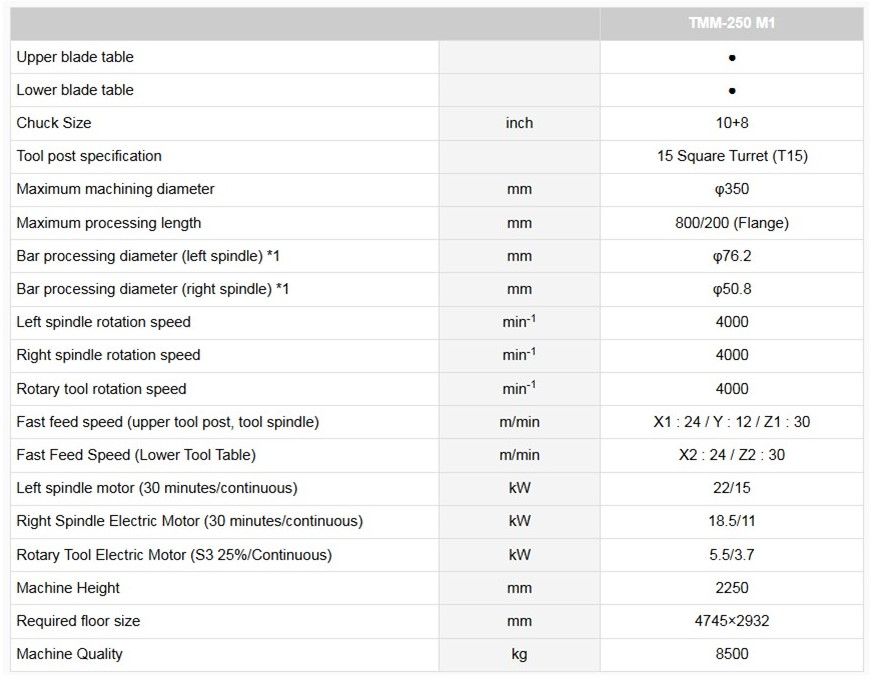

●: Standard
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.

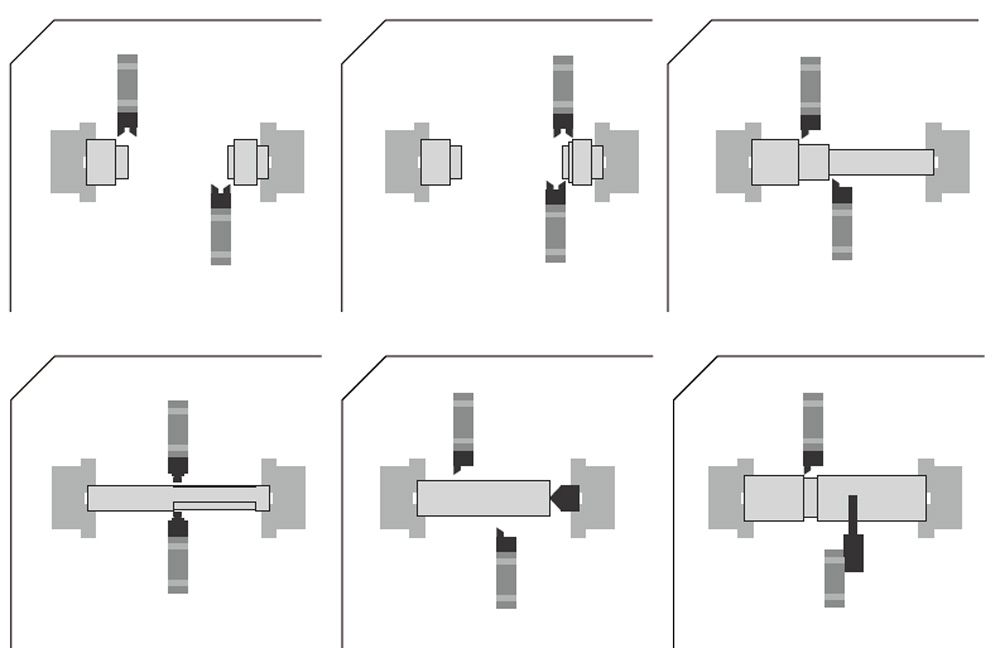

With a combined CNC lathe, you can cover all kinds of workpieces with a wide variety of machining variations.

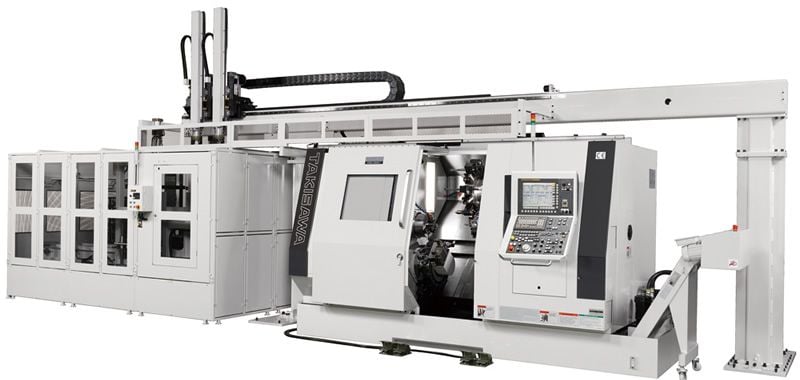

*TMM-250M1G Process Integration + Automation Support
Gantry Loader System
