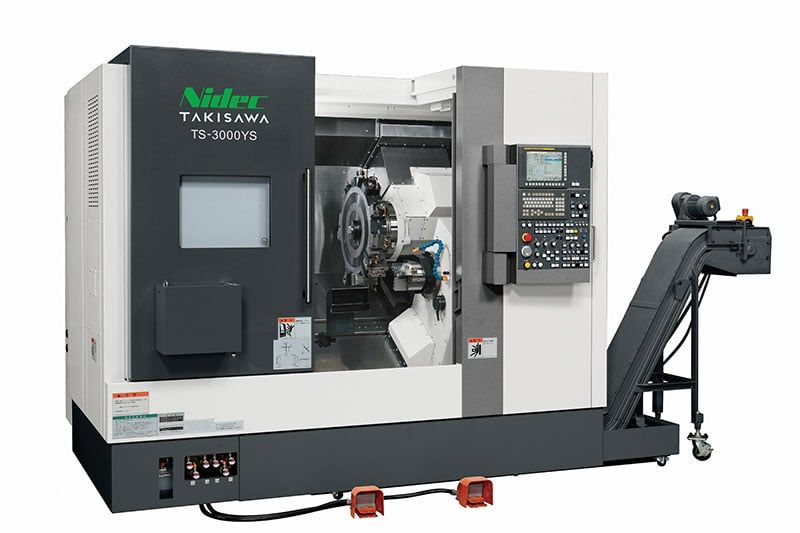

The TS-3000YS is a composite lathe that can flexibly handle variable workpieces in markets with increasing demand, such as aircraft, medical, and construction machinery. This machine has two main axes, left and right, and is a process-intensive CNC lathe that can complete the processing of the front and back processes in one piece.

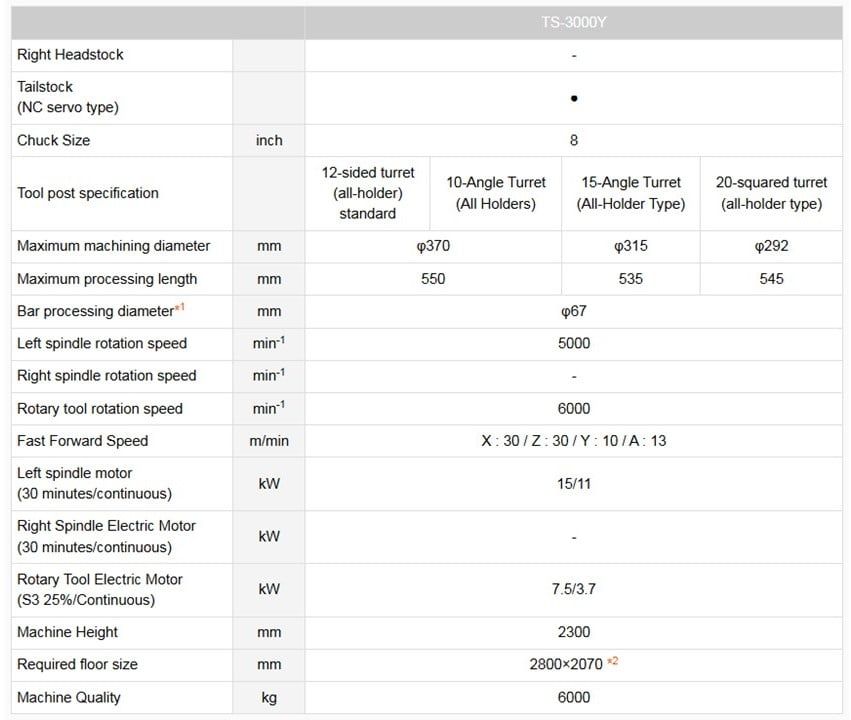

●:Standard - :None
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) The dimensions do not include oil pan or chip conveyor.

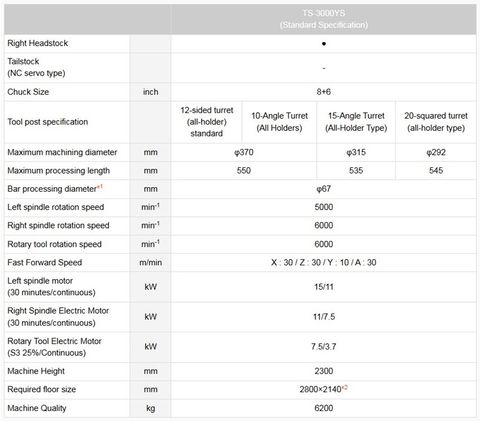

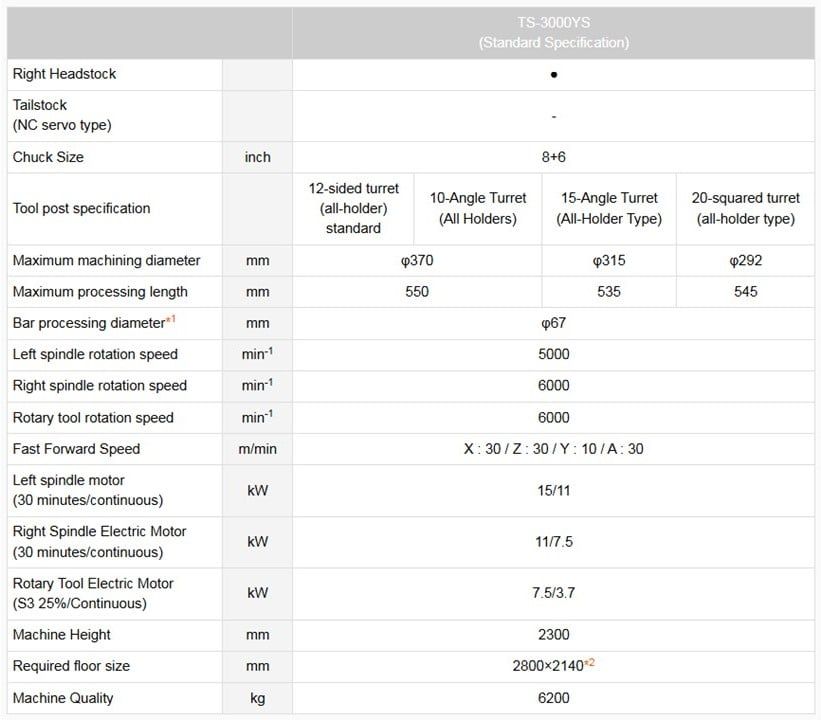

●:Standard - :None
*1) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*2) The dimensions do not include oil pan or chip conveyor.

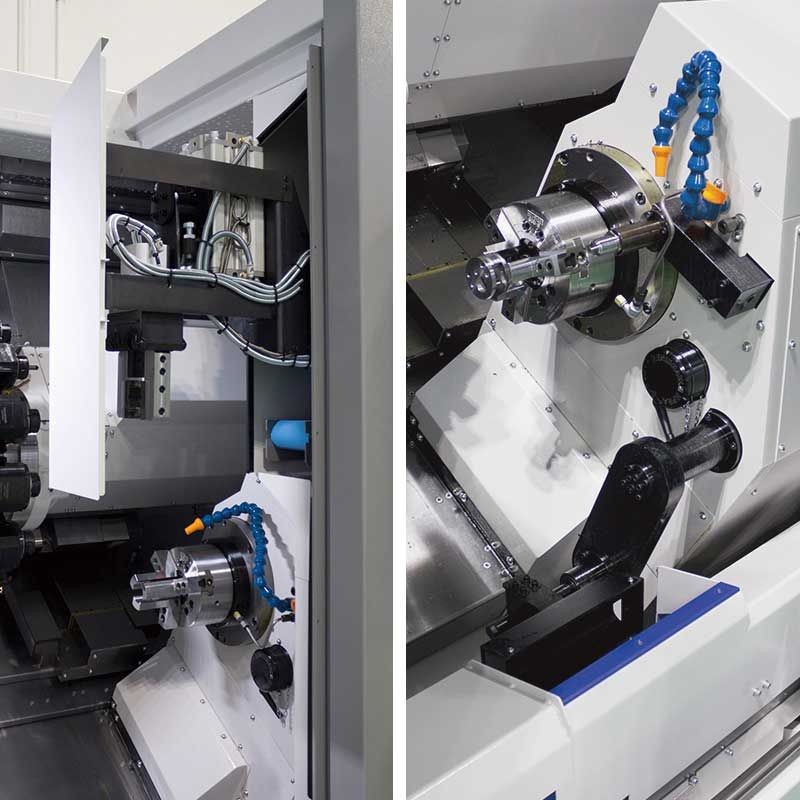

*In-flight automation support (special specifications)
Workpiece Ejection Unloader/Workpiece Ejection Part Catcher
