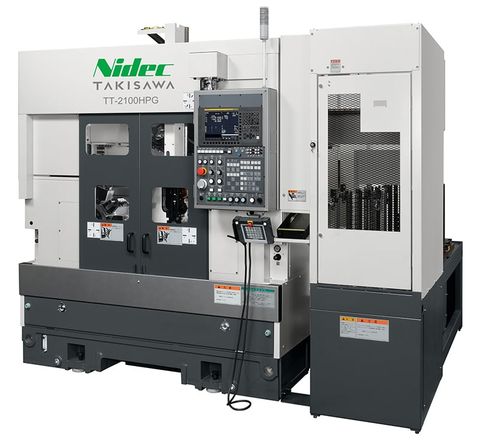

NIDEC TAKISAWA - CNC LATHE - TT-2100HG / TT-2100HPG (2 SPINDLE, 2 TURRET)

Newly developed high-precision specifications for the best-selling TT-2100G.
Cycle time is shortened by increasing the fast feed speed due to the linear guide specification.
The patented high-precision direct measuring system minimizes the effects of thermal displacement. We will make a good product come true.

*Linear guide specification for faster speed

The X/Z axis guidance is a linear guide specification. It has high tracking during micro-movement and micro-taper machining, and achieves high-precision machining.

25% faster X/Z axis feed rate (30 m/min). The turret axis rotates while moving, further reducing cycle time.

*High Precision Direct Measuring System

The HP specification is equipped with a "High Precision Direct Measuring System" that directly measures the position relationship between the spindle and the tool post with a glass scale mounted on the X axis. The effect of thermal displacement is minimized, and machining is stable and accurate even during cold starts.

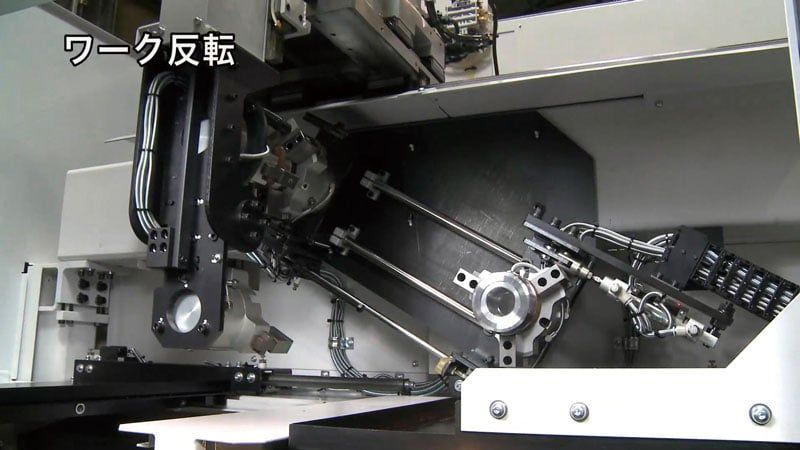

*Reversing device

This device enables simultaneous processing of both front and back sides.
It is located at the top of each spindle for optimal performance.
*Unlike two spindle lathes in a row with a reversing device in between, the space efficiency alone is obvious.

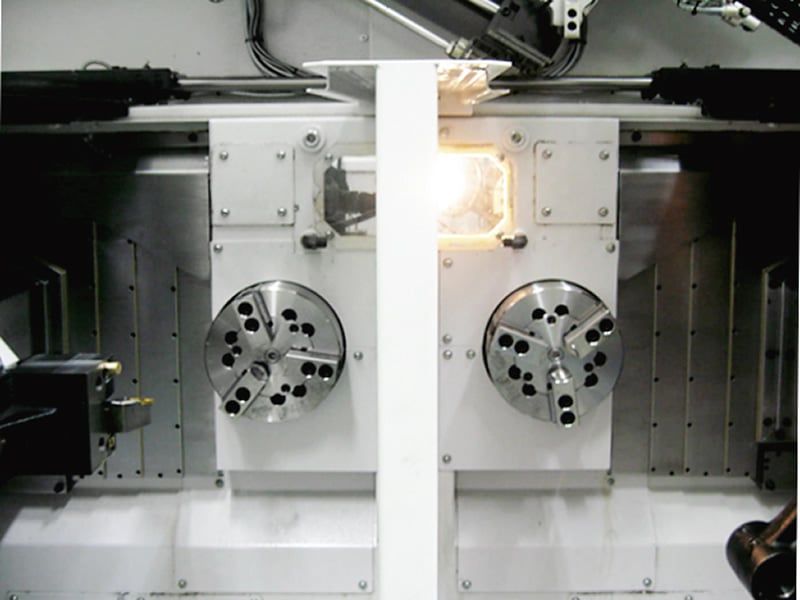

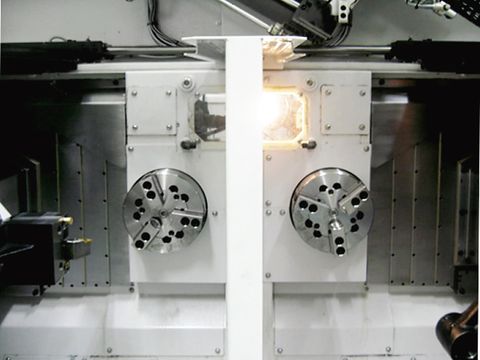

*When operating manually, the in-flight lighting informs the target of operation!
