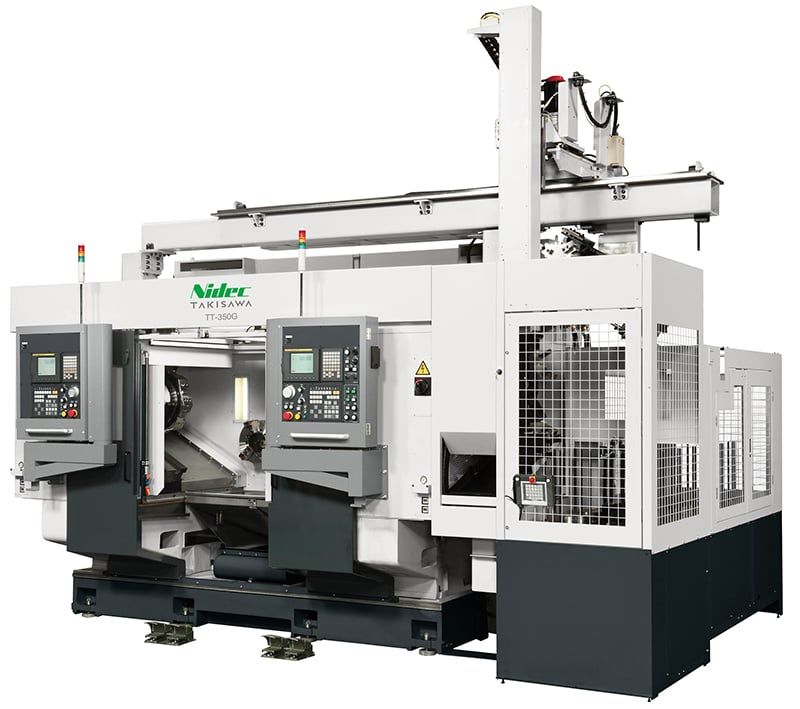

NIDEC TAKISAWA - CNC LATHE - TT-350G (2 SPINDLE, 2 TURRET)

The TT-350G is a parallel two-spindle CNC lathe with a total high rigidity concept and a sliding surface bed structure that does not overhang to handle workpieces with heavy and intermittent cutting. Ideal for mass production 12 (10) inch chuck workpiece.

• Achieve the shortest accessibility in its class.
• Loader specifications for heavy workpieces are set.
• The X-axis and Z-axis sliding surfaces and tool post adopt the same high-rigidity and high-reliability structure as general-purpose two-axis lathes.
• The sliding surface adopts a high-durability square slide on all axes. Longer tool life and increased machine utilization.
• It is equipped with software that emphasizes convenience and operability as a tool for operators, contributing to the reduction of non-production time such as setup work.
• Energy-saving environment.
