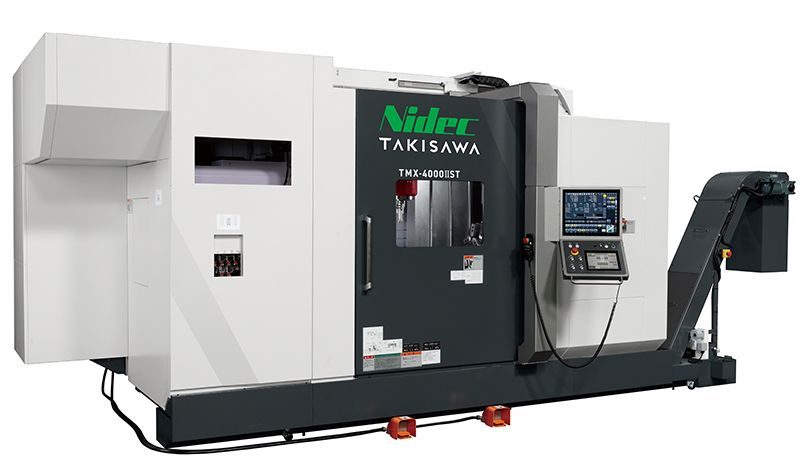

NIDEC TAKISAWA - MULTITASKING MACHINE - TMX-4000

Expanded the range of workpieces to be processed!

The X-axis: 605 mm, Y-axis: 260 mm, and Z-axis: 1500 mm emphasize ease of use with a large axis travel. Because of the large amount of travel, high-precision machining such as milling, milling, and face drilling can be performed with one chucking while keeping the C-axis (spindle) fixed.

Achieving both high-precision indexing performance and heavy cutting capability

The B-axis adopts a direct drive motor and a clamping diaphragm brake to achieve high speed and high accuracy (minimum indexing accuracy of 0.0001°).

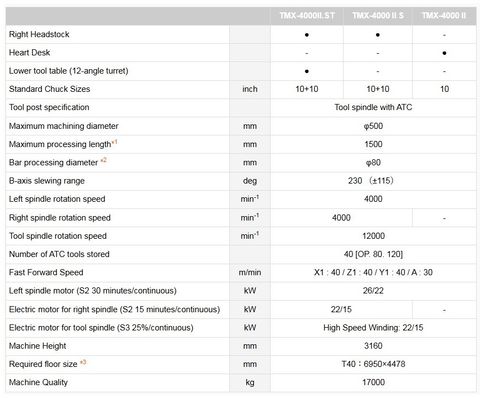

●:Standard - :No
*1) The maximum machining length varies depending on the type of chuck.
*2) The diameter of the bar may change depending on the chuck and cylinder to be attached.
*3) Includes horizontal chip conveyor, control panel, and ATC magazine.

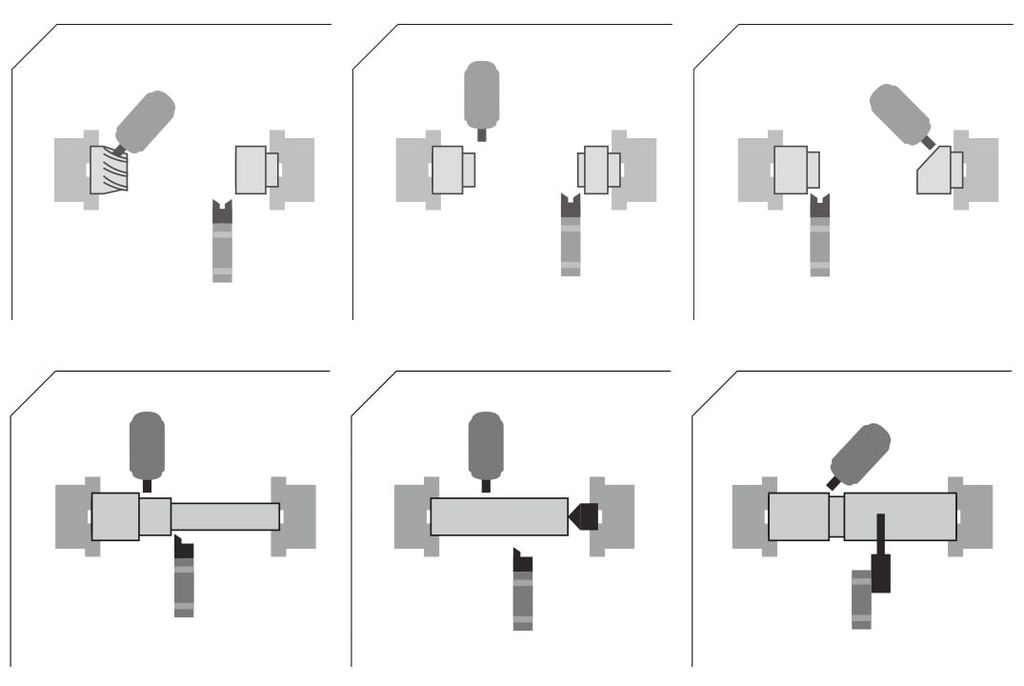

Multitasking machines cover all kinds of workpieces with a variety of processing variations.
