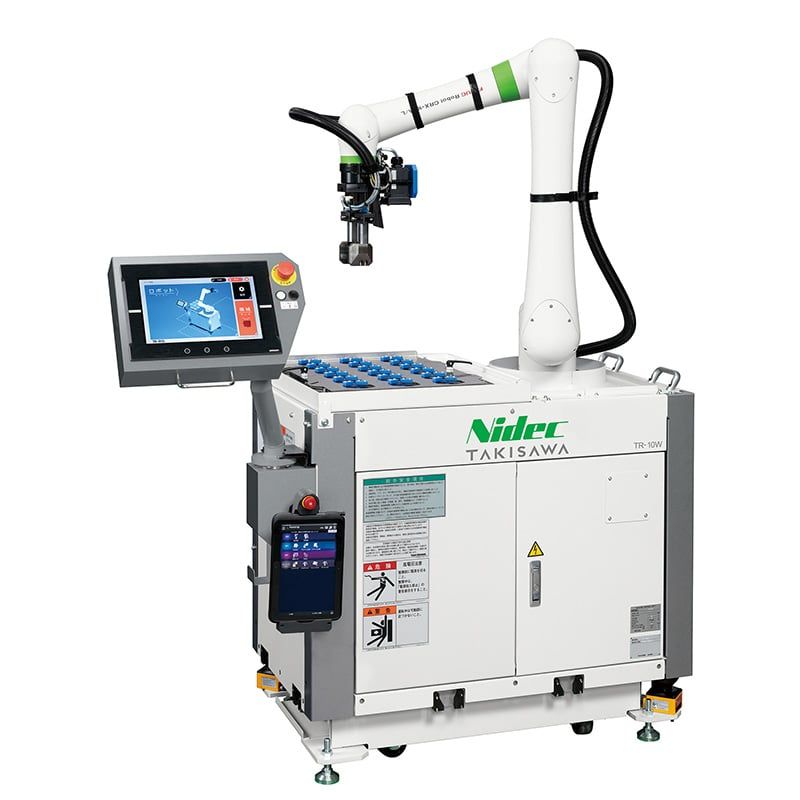

This is a robot system that adopts a cell system specialized in high-mix, low-volume, and variable production of variants. It is easy to introduce and relocate because it is simply placed in front of the machine by hand.
*Feature
- Flexible operation possible
- Easy to install and install
- Anyone can use it

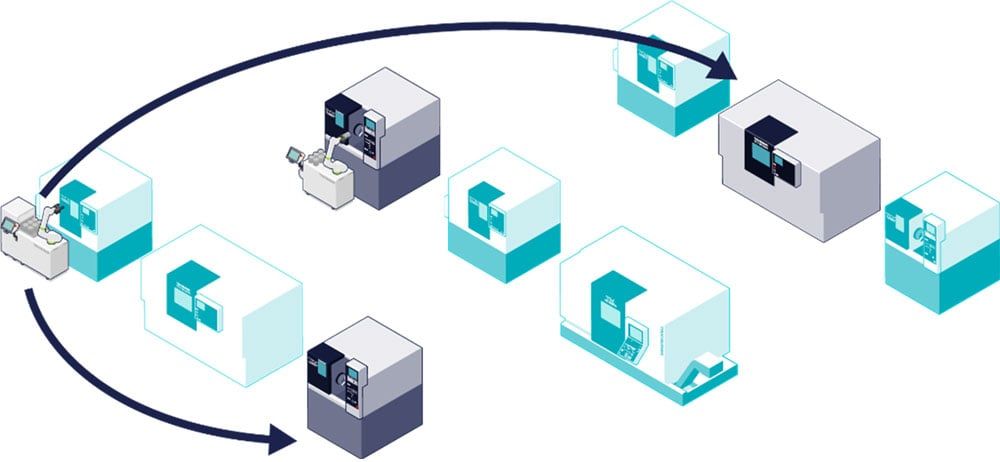

*Can be moved to multiple machines by hand
A single TR-10W can be used to relocate to multiple machines. Flexible automation is possible according to production schedules.
*Easy Setup

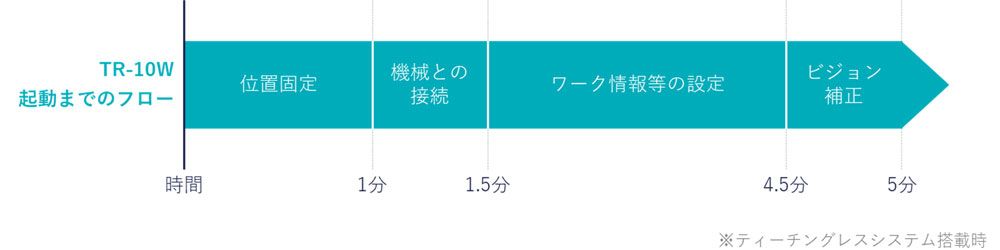

From installation to start-up in as little as 5 minutes. The overwhelming time savings reduce the burden on the operator.

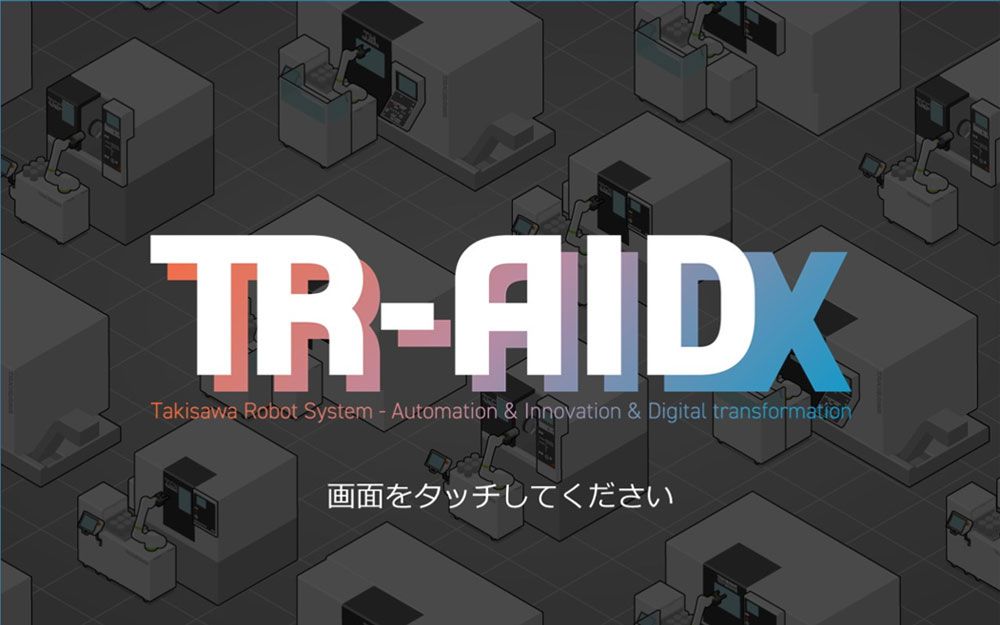

*Teaching Systems (Startup Package)

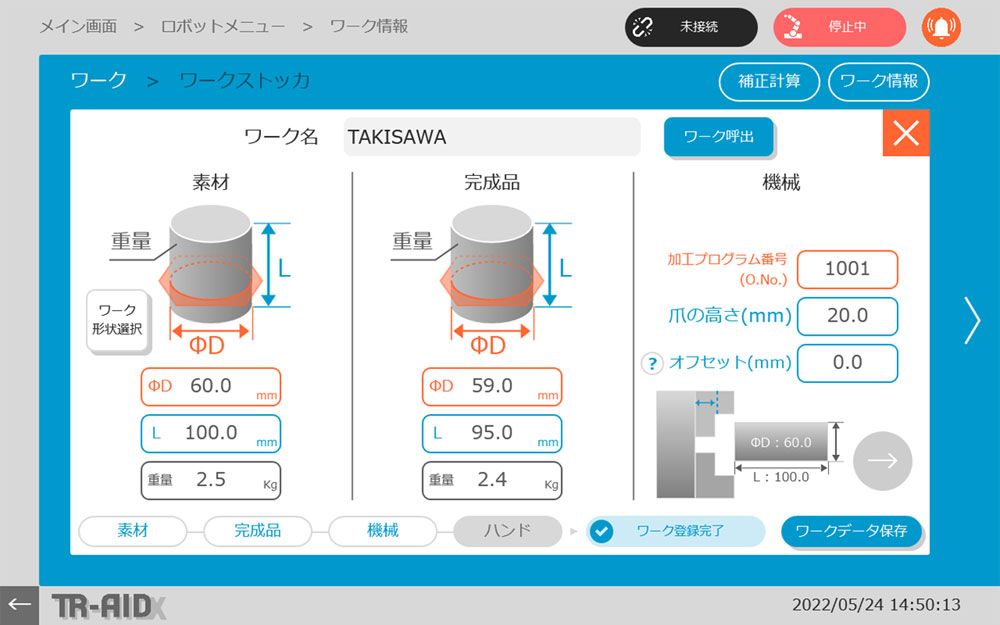

When the workpiece changes or the system is relocated, re-teaching is generally required. With the TR-10W, you can save the time and effort of teaching by simply entering workpiece information.
*Main compatible models
- TCC-1100/2100
- TCN-2100/2600
- TCY-160Ⅱ/200Ⅱ
*Connecting Machine Specifications
- Automatic door
- Chuck M Function
- Air blowing
- Modbus/TCP connection (embedded Ethernet)
- (Heart Push M Function*) In the case of the heart press specification
