Features
Flagship model incorporating extreme precision machining

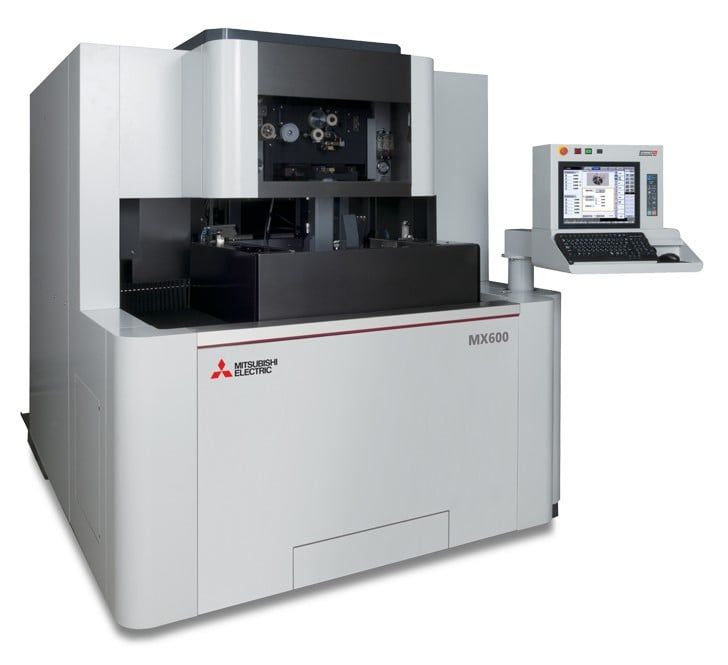

MX600
■Productivity (lean more opens in a new window)
Oil specialized power supply
■Accuracy (lean more opens in a new window)
Linear shaft motor + High-speed fiber-optic communications
■Stability (lean more opens in a new window)
High rigidity + Structure with heat / vibration isolation
■Intelligent AT (lean more opens in a new window)
Innovative automatic wire threading
■Usability (lean more opens in a new window)
Outstanding usability
■ADVANCE PLUS control improves / High-value-added (lean more opens in a new window)
SPECIFICATIONS:
| Machine Unit | |||
| Max. workpiece dimensions (W x D x H) | [mm] | 620 x 610 x 100 | |
| Max. workpiece weight | [kg] | 300 | |
| Table dimensions (W x D) | [mm] | 560 x 485 | |
| Table Type | Four-sided hardened table | ||
| Machine travels (X x Y x Z) | [mm] | 300 x 200 x 180 (XY axis OPT-drive specifications) | |
| Machine travels (U x V) | [mm] | ±35 x ±35(Optdrive) | |
| Wire diameter | Standerd | [mm] | φ0.04 - 0.2 |
| Option | [mm] | φ0.02,0.03 | |
| Working tank method | Automatic vertical front door | ||
| Machine Weight | [kg] | 3400 | |
| Dielectric fluid reservoir | |||
| Tank capacity | [L] | 300 | |
| Filtering method | [Pieses] | 2 | |
| Installation | |||
| Outline dimensions (W x D x H) | [mm] | 1970 x 2800 x 2100 | |
| Machine unit dimensions (W x H) | [mm] | 1970 x 2100 | |
