MÁY ĐÚC NHÔM SHIBAURA SIÊU LỚN - DÒNG DC-R

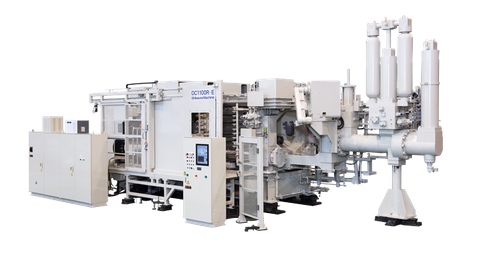

Die casting machine with electric mold clamping function “DC1100R-E”

• Mold clamping time is reduced by adopting a toggle mechanism driven by an electric servo motor. Stable operation by high response and precise position control compared with hydraulic mold clamping. Simultaneous operation of electric clamping and hydraulic actuator realizes high cycle.

• The injection mechanism adopts a piston control system newly developed in the small-and medium-sized R series to shorten the adjustment time.

• Stable pressure intensifying injection by installing an accumulator as standard as a conventional large-sized machine.

The injection mechanism is equipped with the same large-capacity servo as the high-grade model.

By adopting the wide template as the standard for the die plate, it is also possible to handle large molds!

Sensing cooling specifications (Option)

Equipped with a controllable solenoid valve at
two inlets on the water supply side of the
standard cooling specification and a flow meter at
the drainage side enables temperature control of
the mold, thus stabilizing product quality.

Specification Numbers
